Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Variable Power Steering Solenoid Valve

Variable Power Steering Solenoid Valve

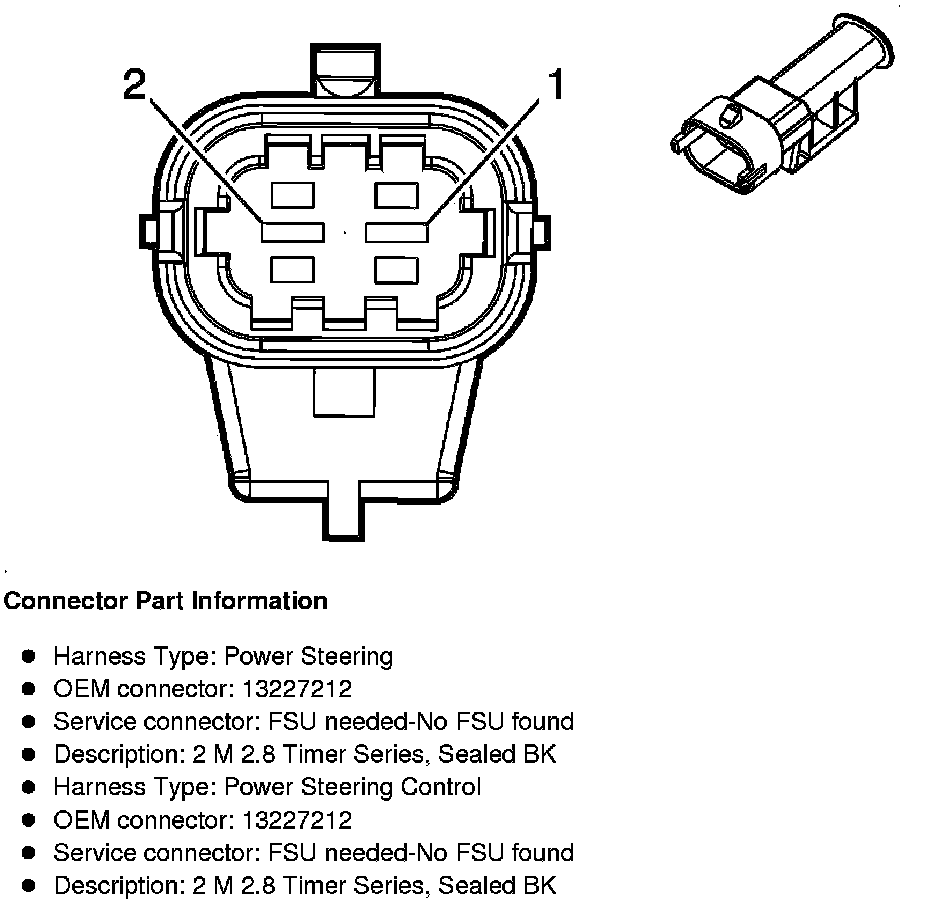

Component Connector End Views

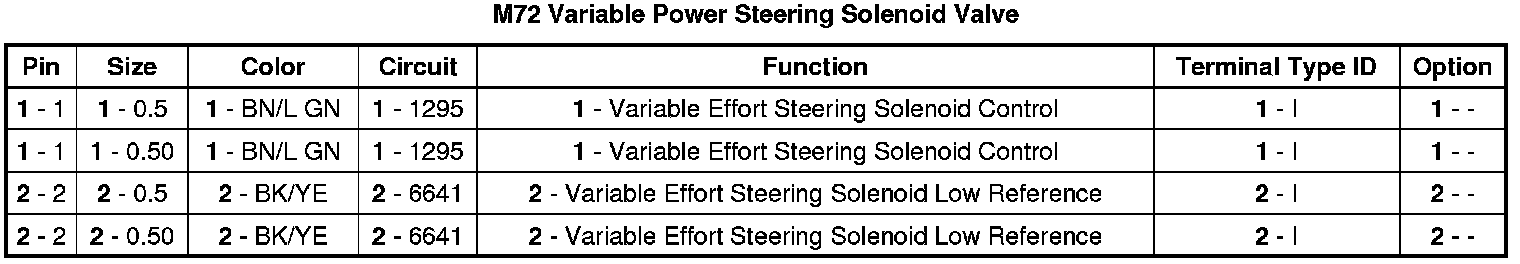

M72 Variable Power Steering Solenoid Valve
