Transmission Manual Shift Switch - Left

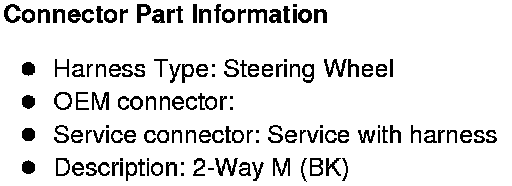

Component Connector End Views

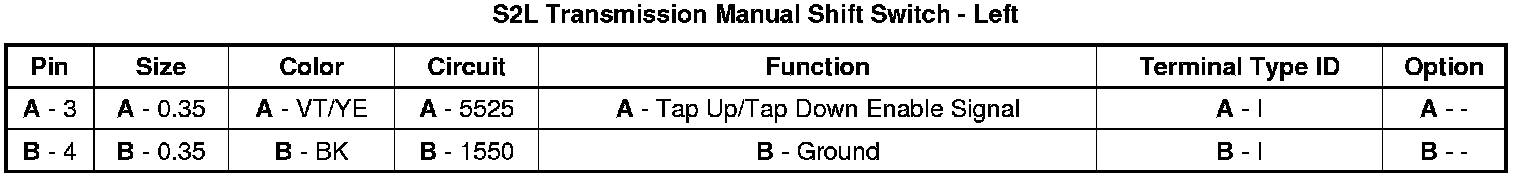

S2L Transmission Manual Shift Switch - Left
