Speaker - Left Rear Window Shelf (UQS)
Speaker - Left Rear Window Shelf (UQS)

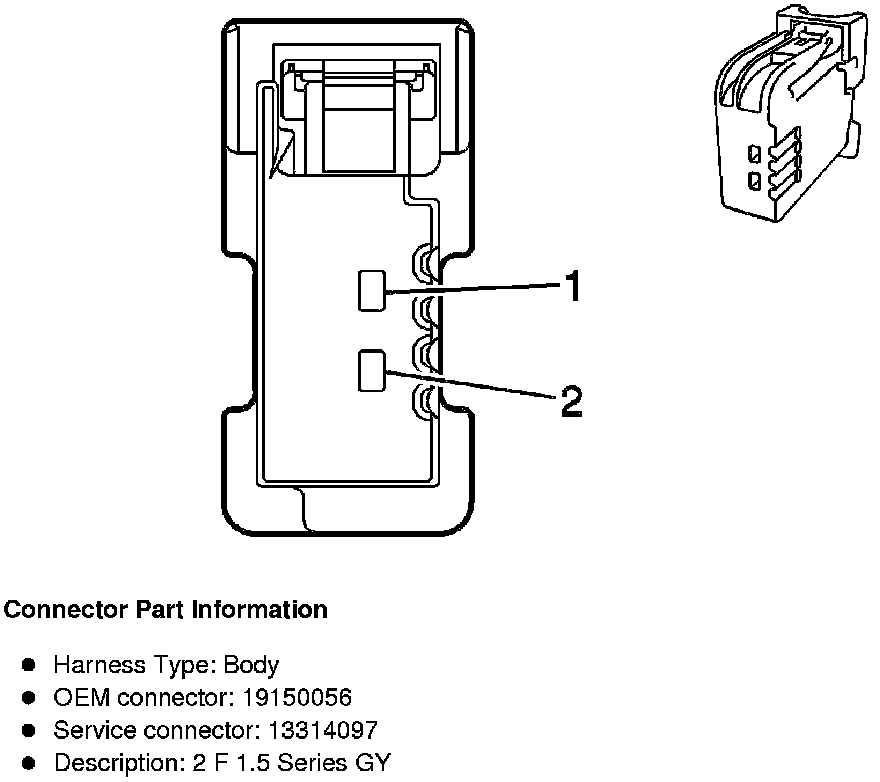

Component Connector End Views

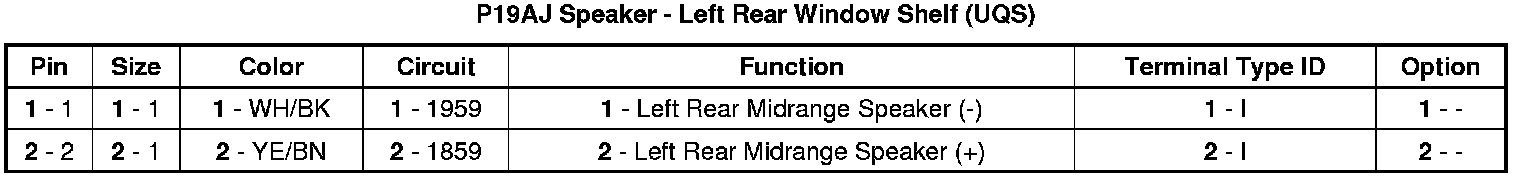

P19AJ Speaker - Left Rear Window Shelf (UQS)
