Speaker - Left Front Tweeter (UQA/UQG)

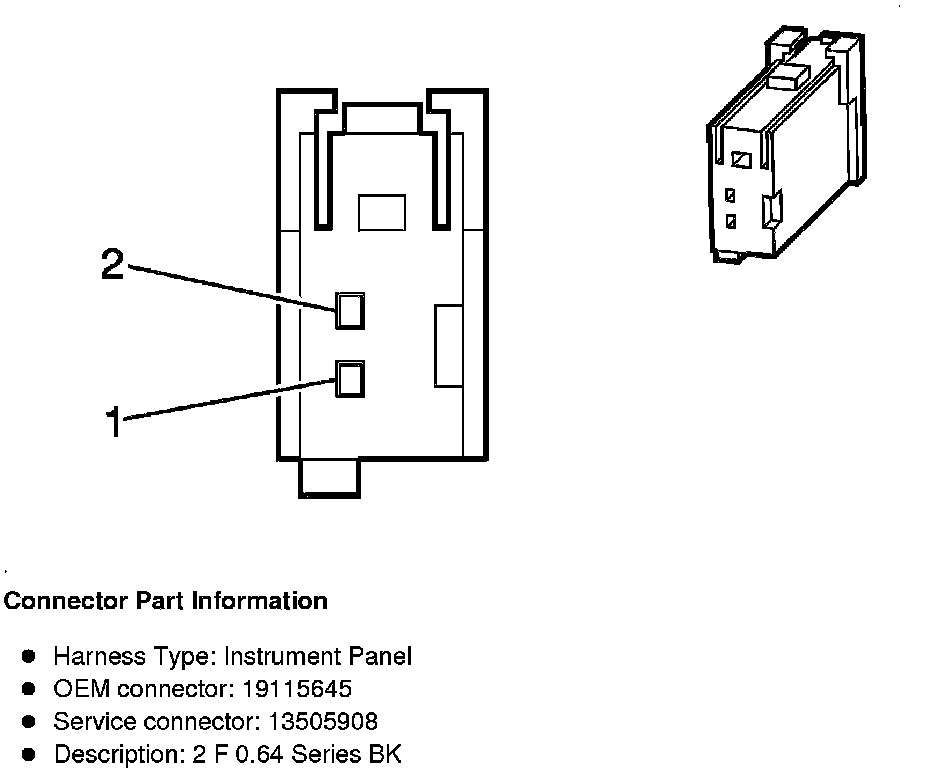

Component Connector End Views

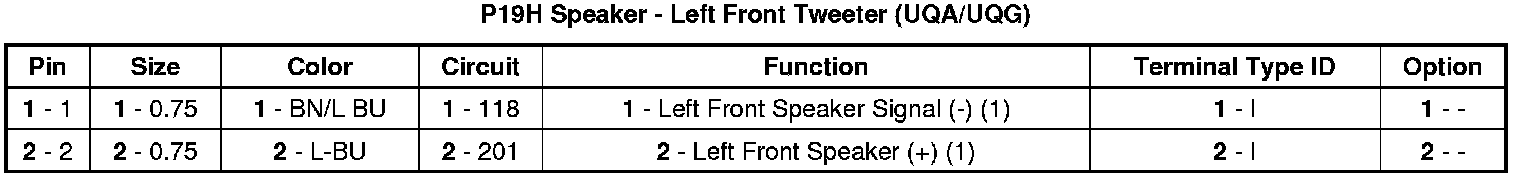

P19H Speaker - Left Front Tweeter (UQA/UQG)
