Speaker - Driver Seat Left (UQS)
Speaker - Driver Seat Left (UQS)
Component Connector End Views

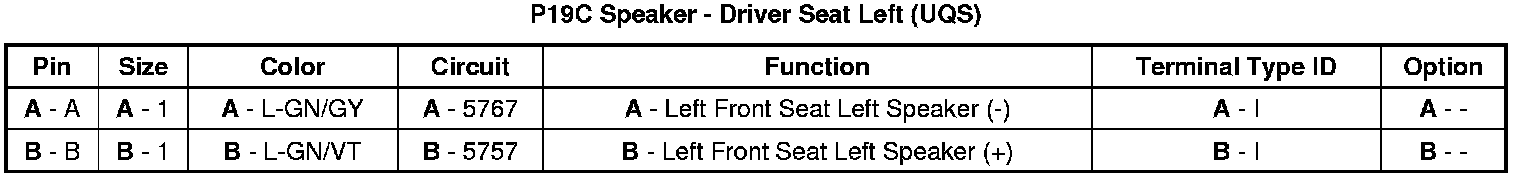

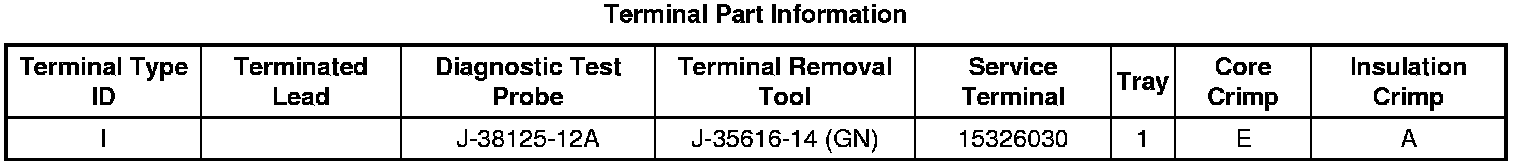

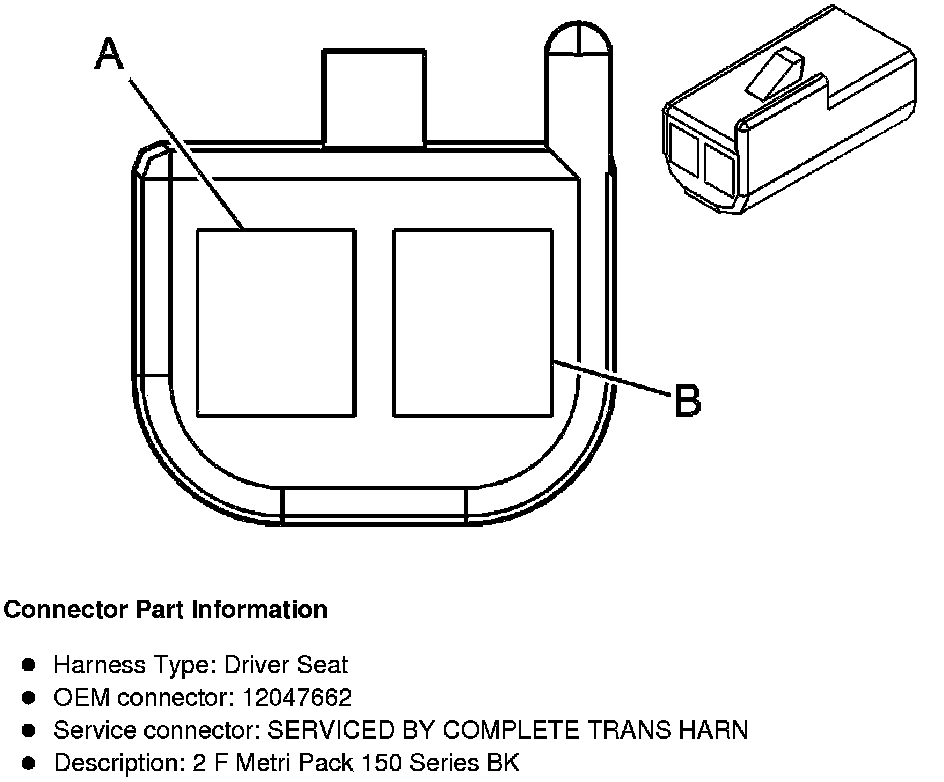

P19C Speaker - Driver Seat Left (UQS)
