Seat Recline Motor - Driver (AG1)

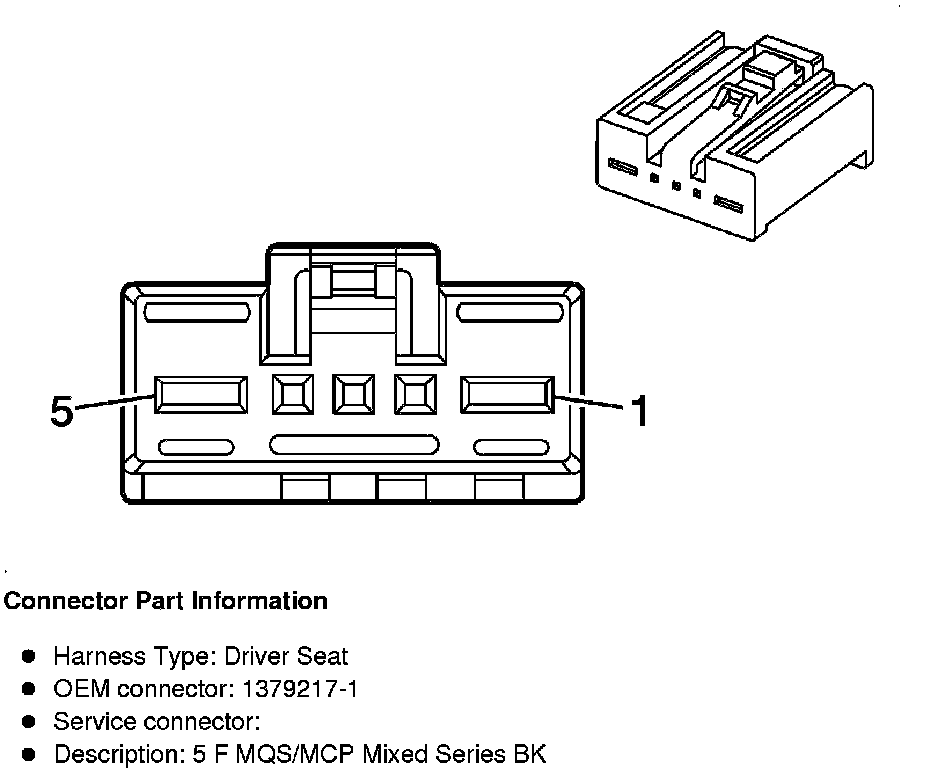

Component Connector End Views

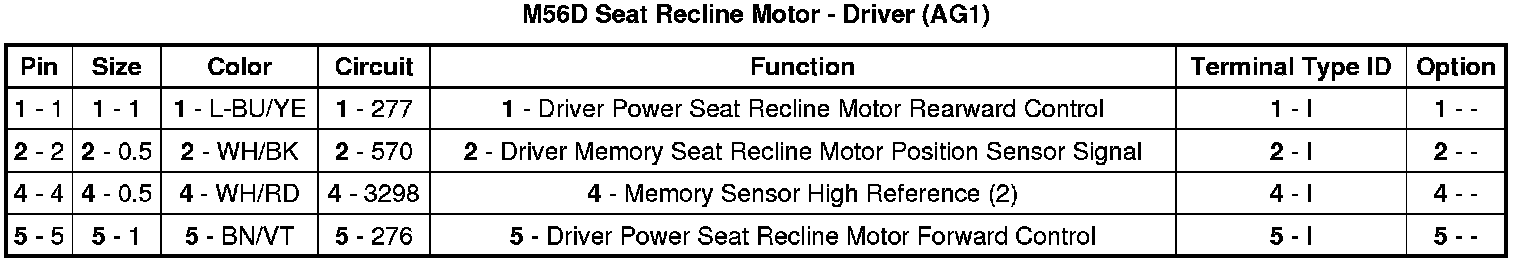

M56D Seat Recline Motor - Driver (AG1)
