Seat Heating Element - Left Rear Cushion (KA6)

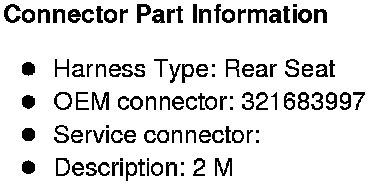

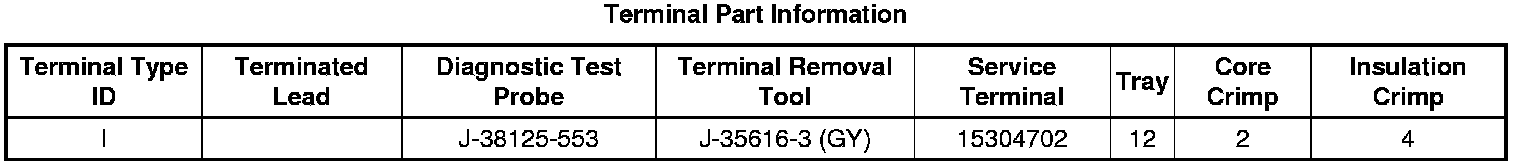

Component Connector End Views

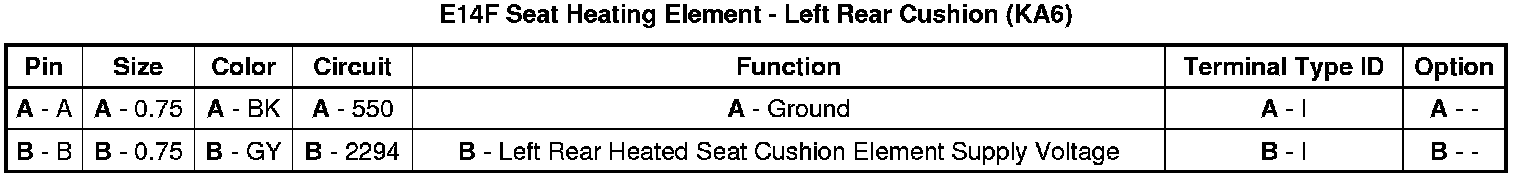

E14F Seat Heating Element - Left Rear Cushion (KA6)
