Seat Heating Element - Left Rear Back (KA6)

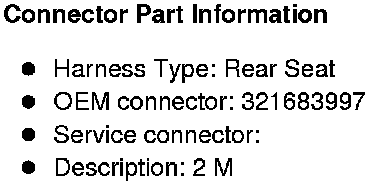

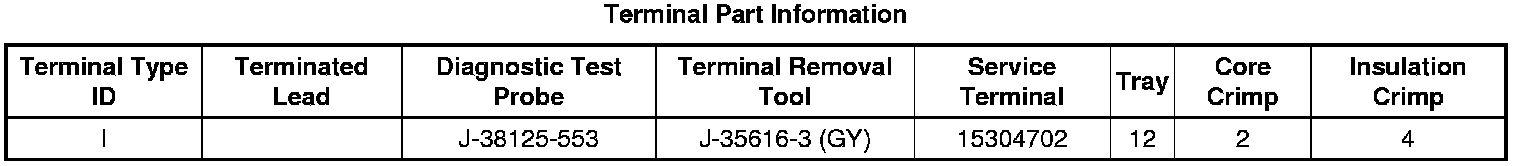

Component Connector End Views

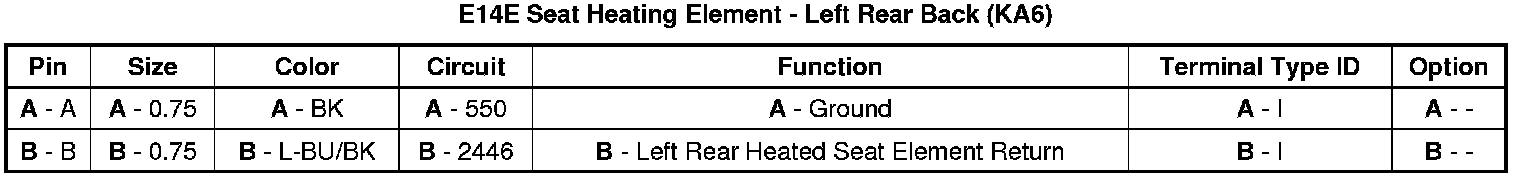

E14E Seat Heating Element - Left Rear Back (KA6)
