Seat Blower Motor - Driver Back (KA1)
Seat Blower Motor - Driver Back (KA1)
Component Connector End Views

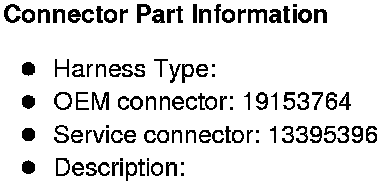

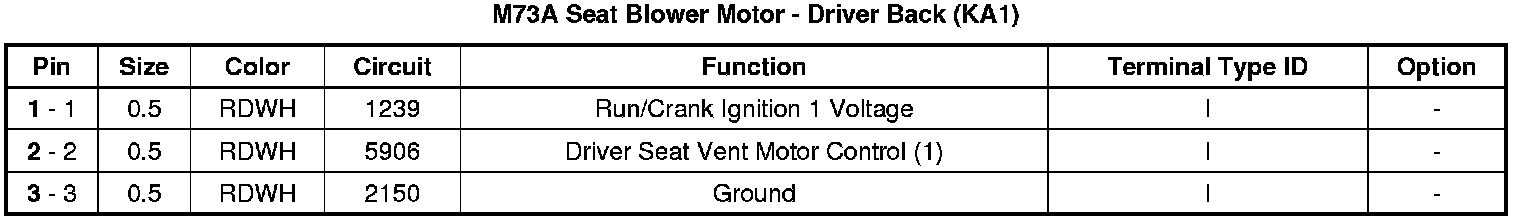

M73A Seat Blower Motor - Driver Back (KA1)
