Seat Air Bag - Left Front (AYF/ANH)

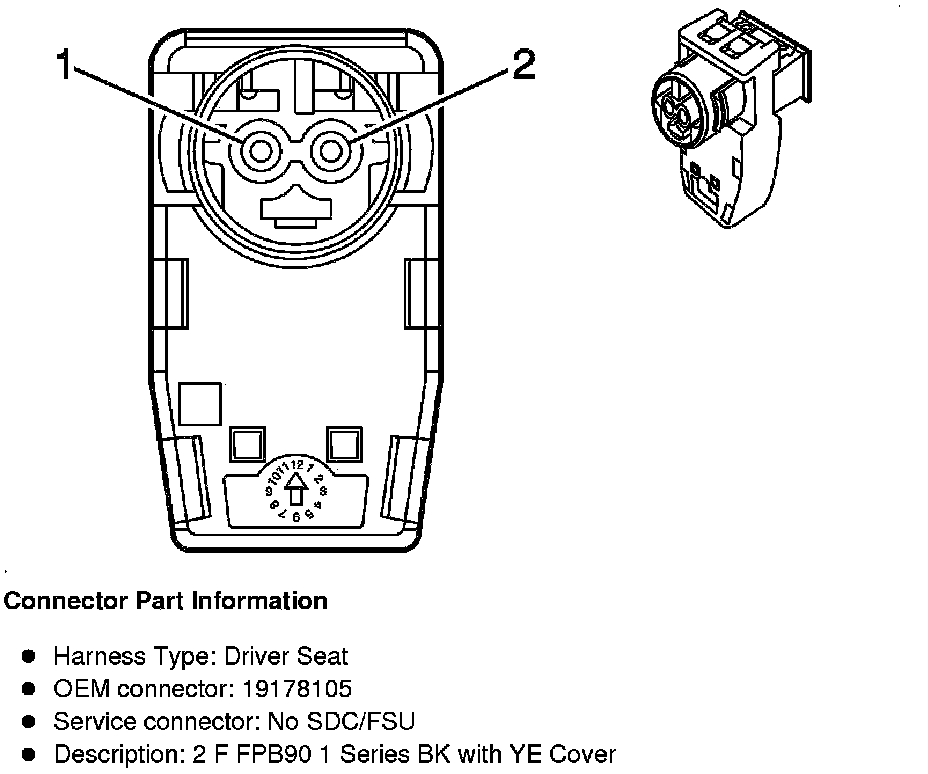

Component Connector End Views

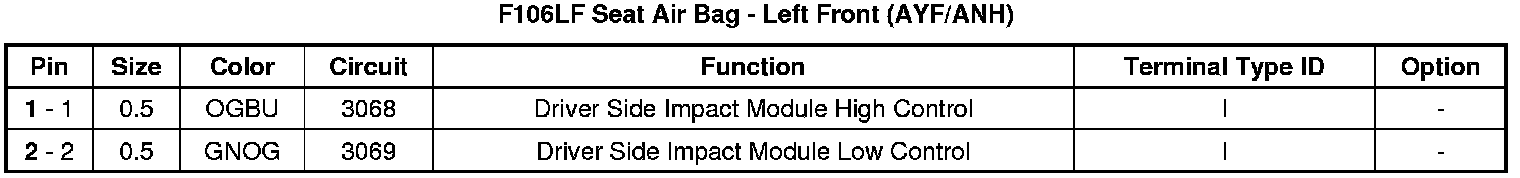

F106LF Seat Air Bag - Left Front (AYF/ANH)
