Radio Volume Compensator Interior Noise Microphone - Left Front (VQS)

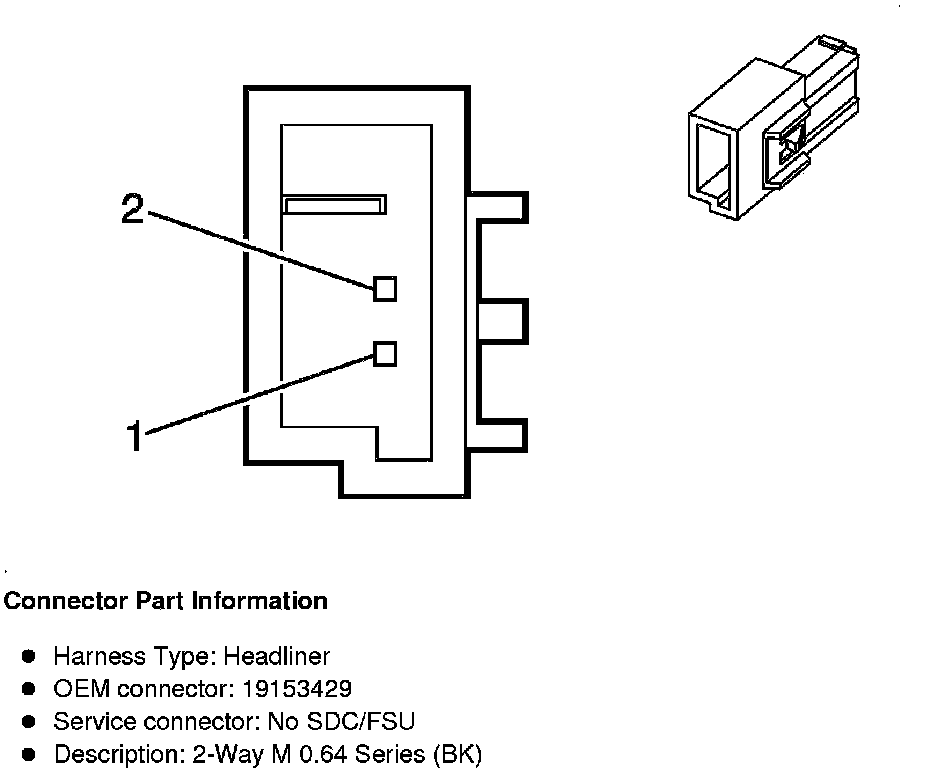

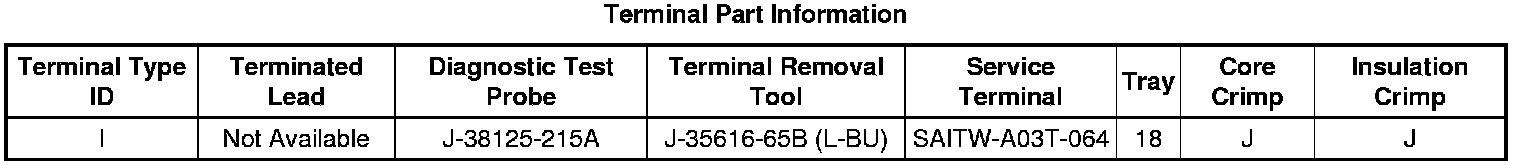

Component Connector End Views

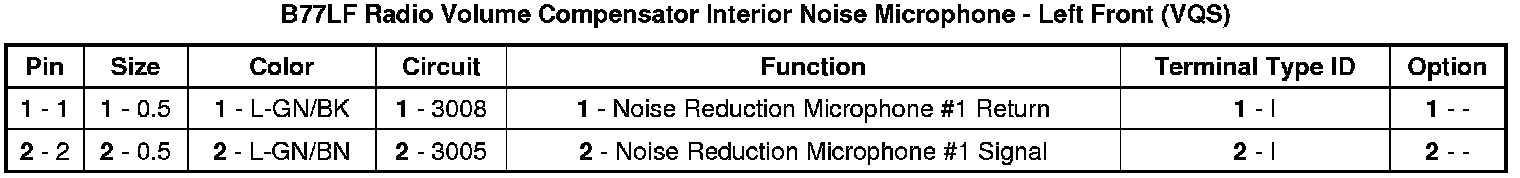

B77LF Radio Volume Compensator Interior Noise Microphone - Left Front (VQS)
