Radio Compensator Interior Noise Microphone - Rear (VQS)

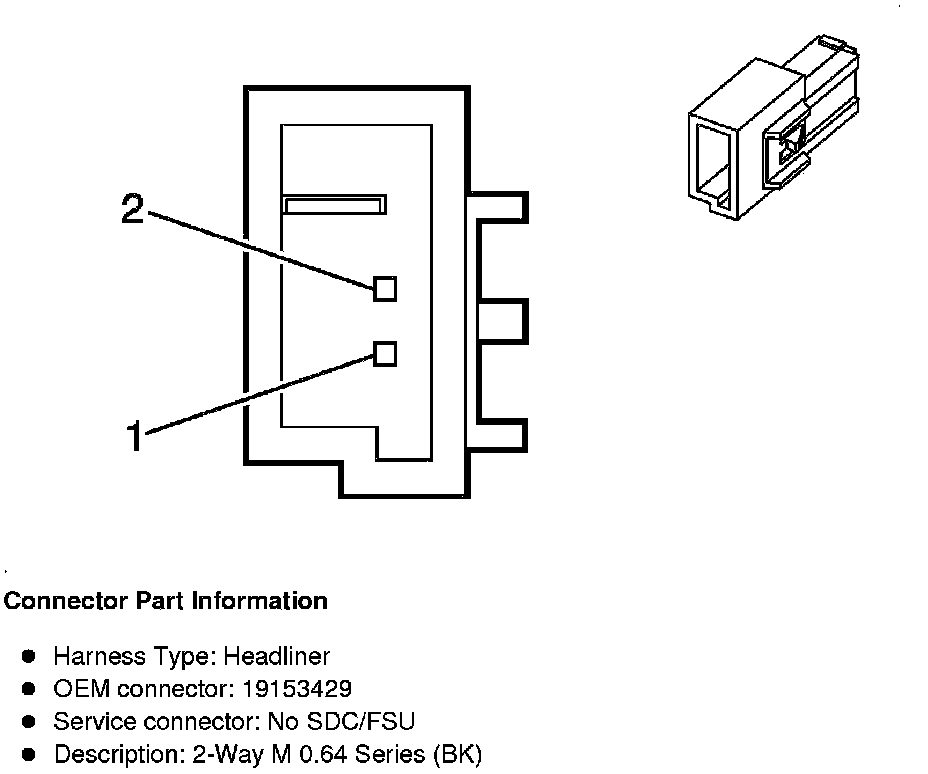

Component Connector End Views

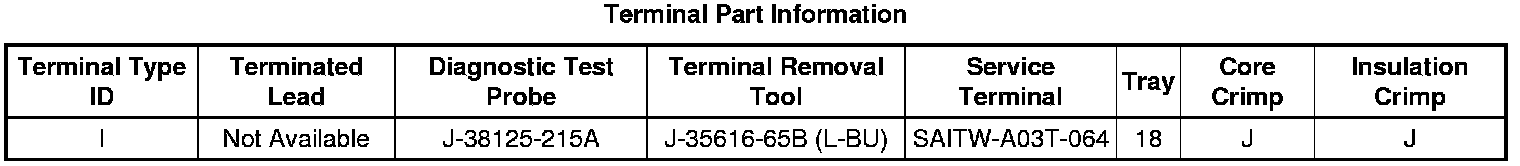

B77R Radio Compensator Interior Noise Microphone - Rear (VQS)
