Pedestrian Impact Detection - Upper Beam Rear




Component Connector End Views

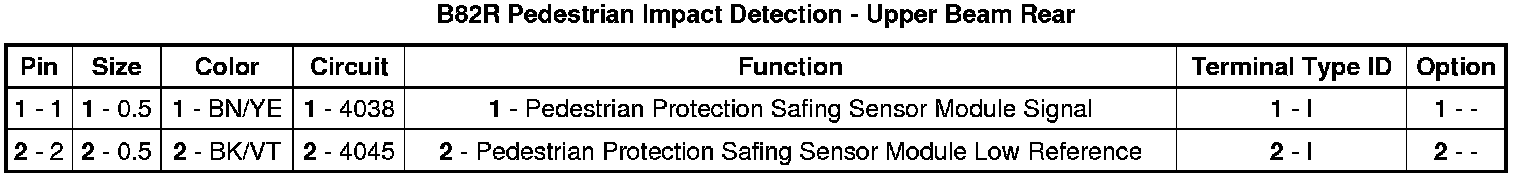

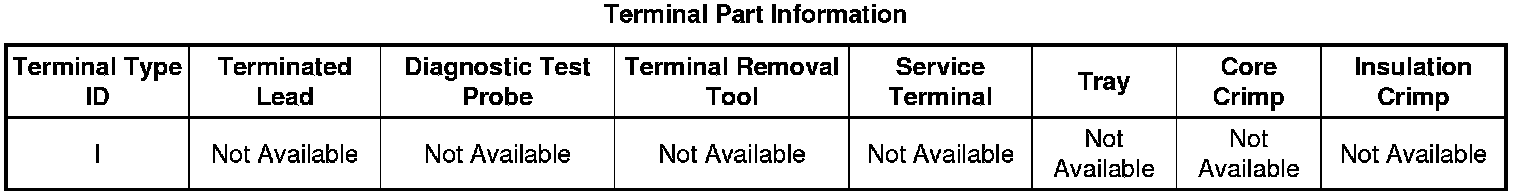

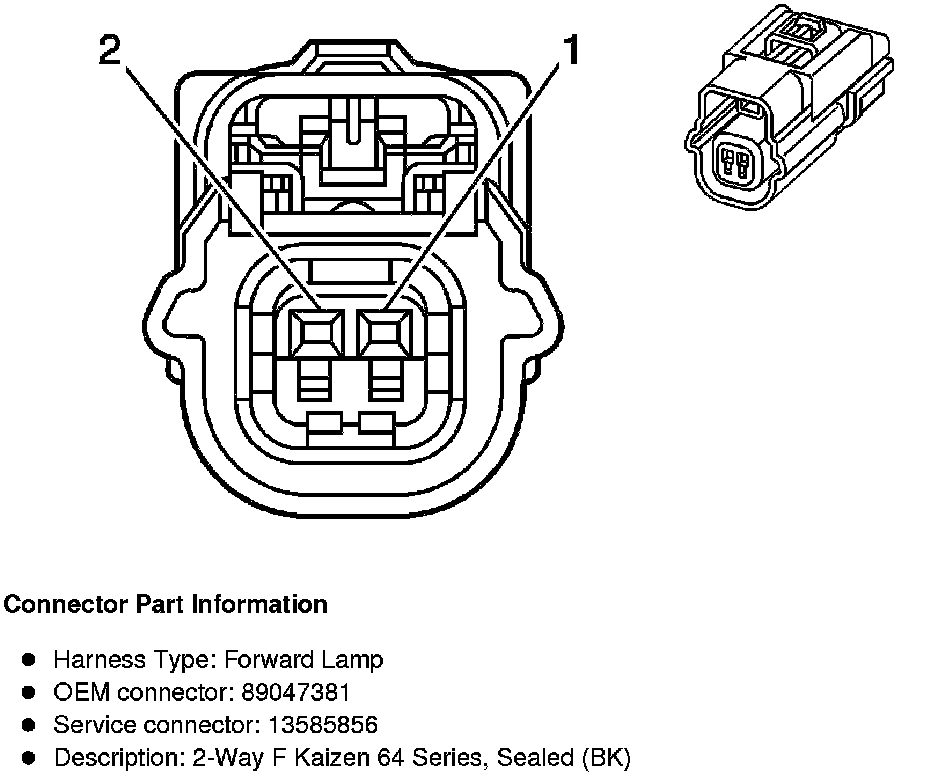

B82R Pedestrian Impact Detection - Upper Beam Rear
