Passenger Air Bag Disable Indicator

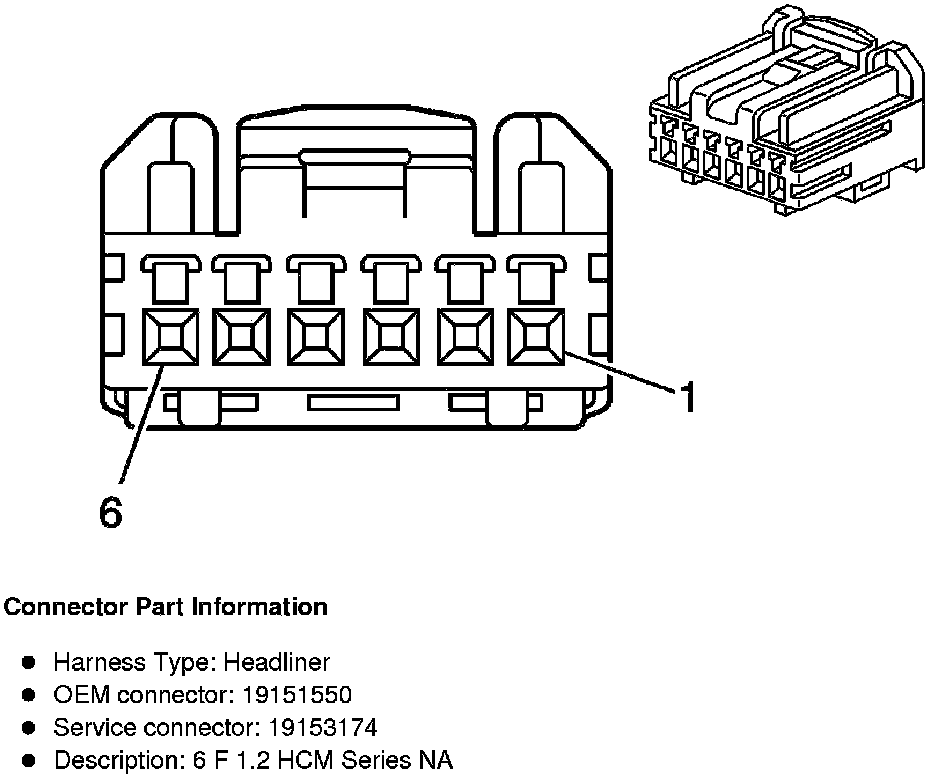

Component Connector End Views

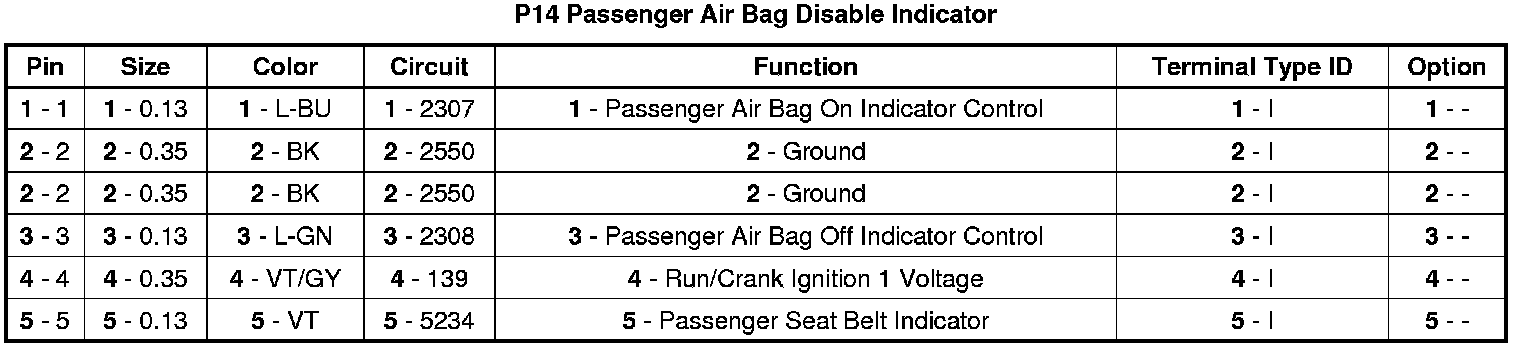

P14 Passenger Air Bag Disable Indicator
