Instrument Panel Compartment Door Unlatch Actuator

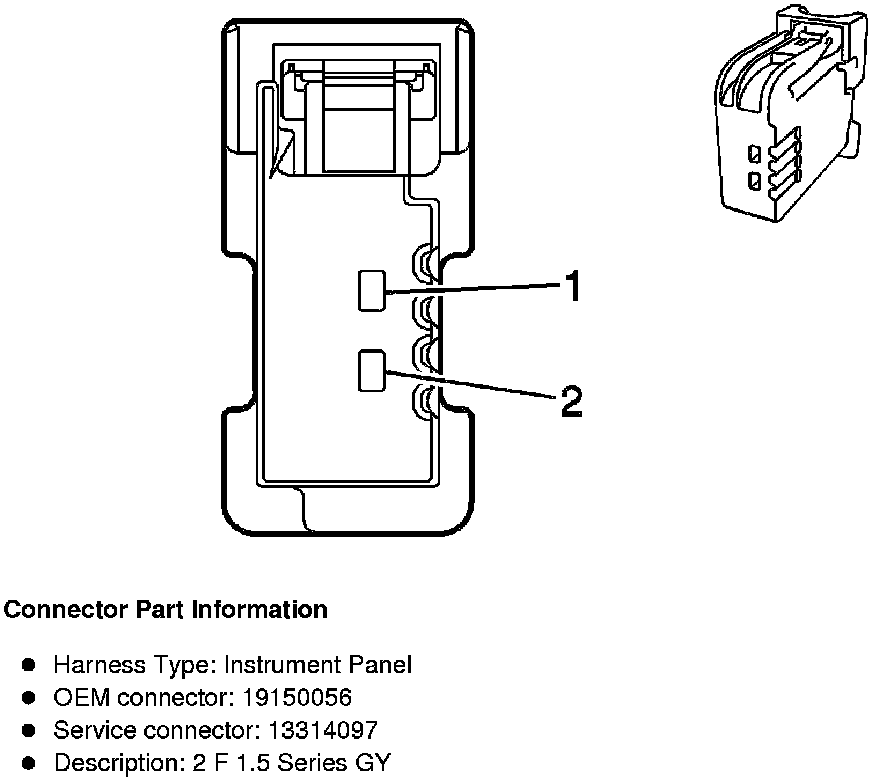

Component Connector End Views

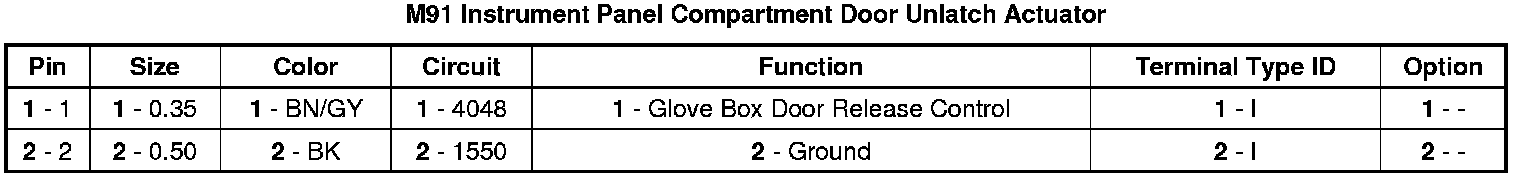

M91 Instrument Panel Compartment Door Unlatch Actuator
