High Beam Solenoid Actuator - Right (T4F)

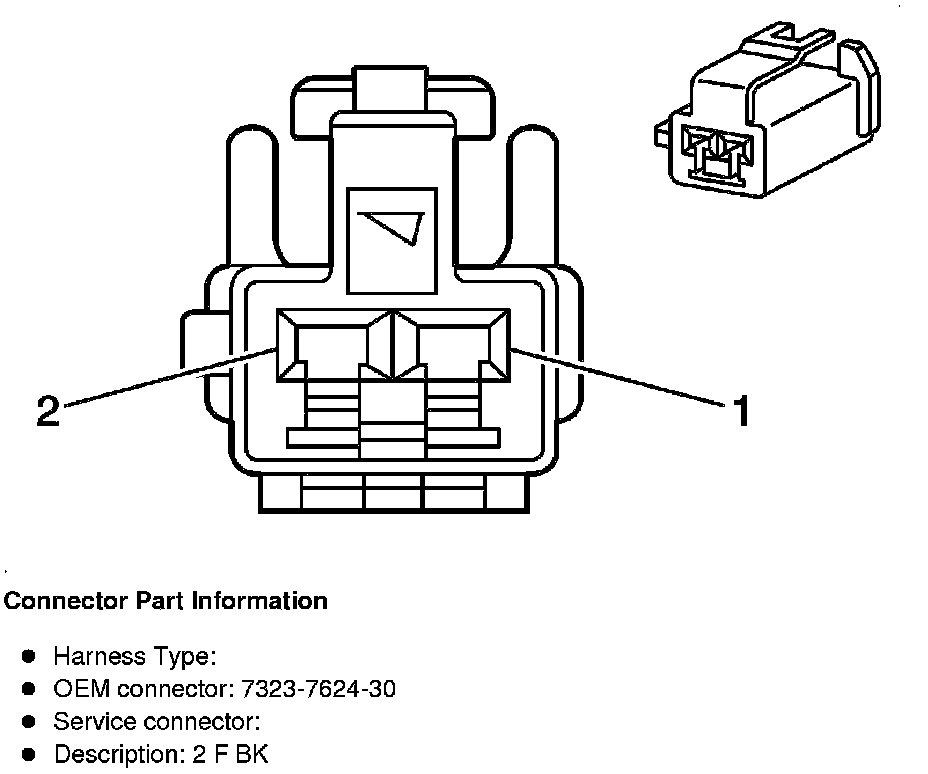

Component Connector End Views

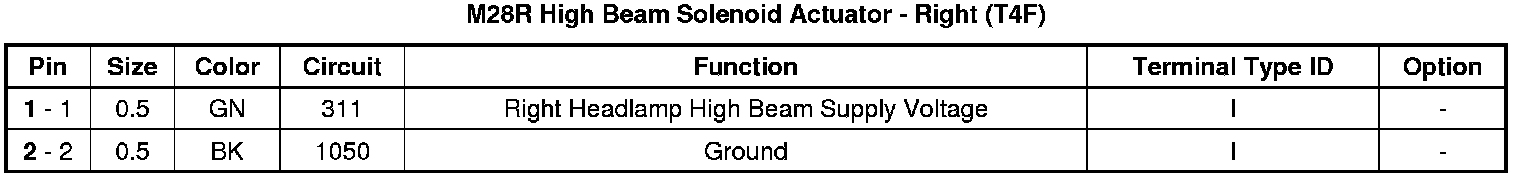

M28R High Beam Solenoid Actuator - Right (T4F)
