Headlamp Leveling Actuator - Left

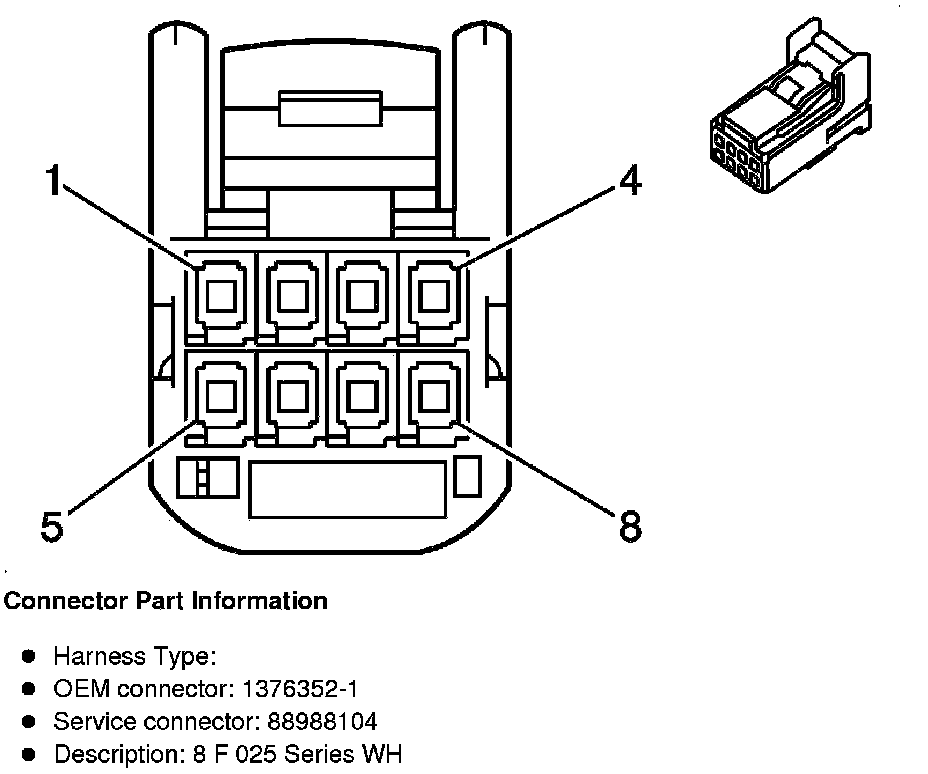

Component Connector End Views

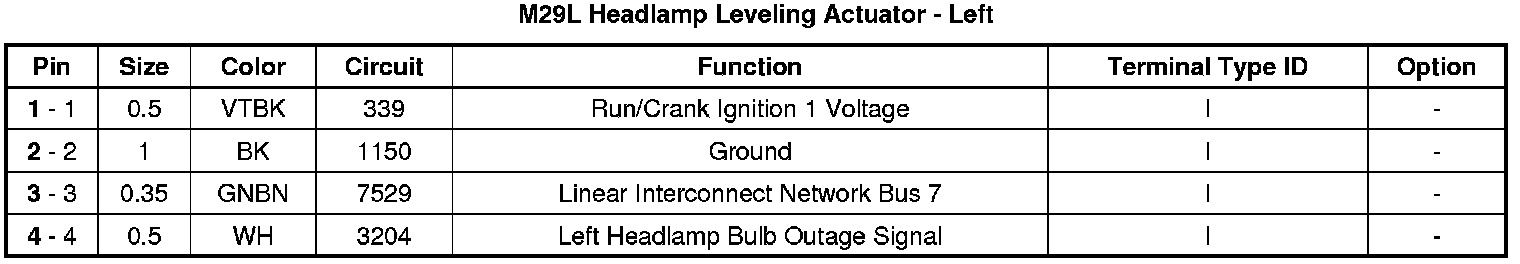

M29L Headlamp Leveling Actuator - Left
