Flood Lamp - Right Rear Door Pull Handle (TSP)
Flood Lamp - Right Rear Door Pull Handle (TSP)
Component Connector End Views

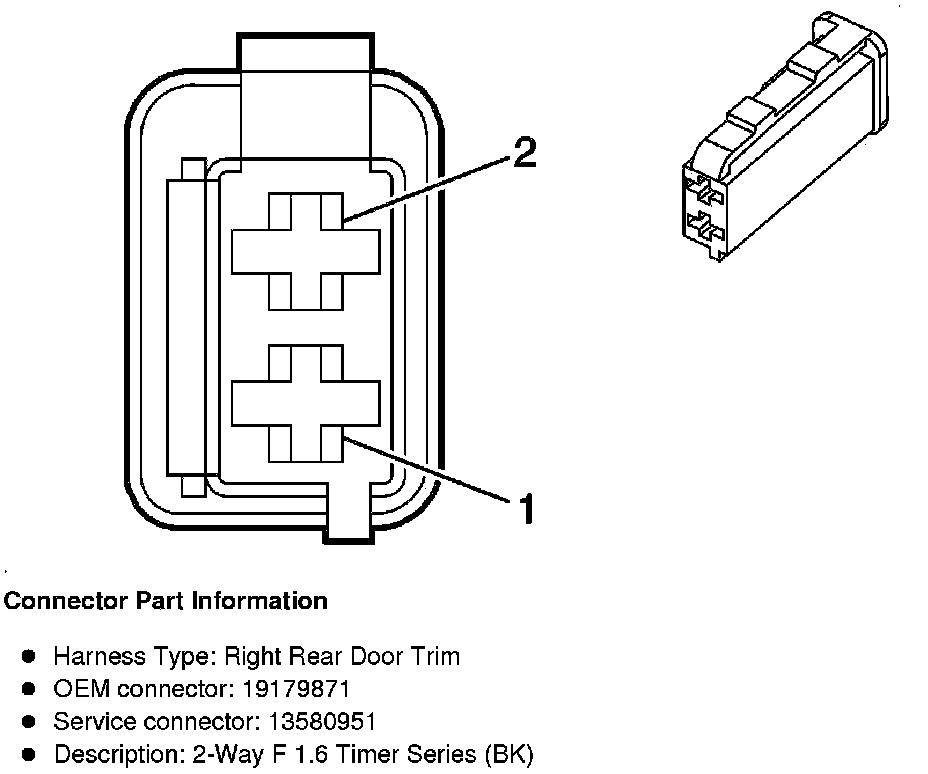

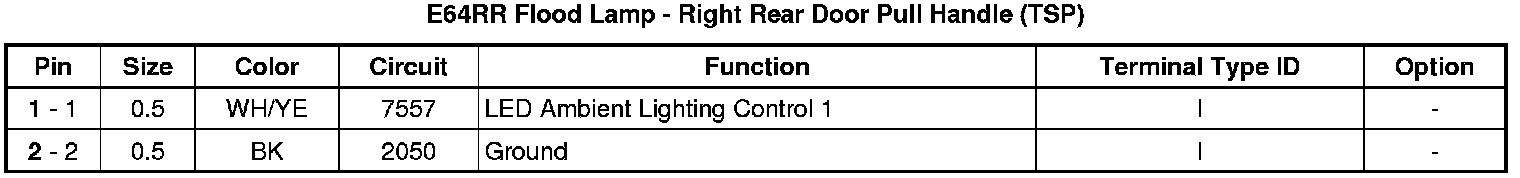

E64RR Flood Lamp - Right Rear Door Pull Handle (TSP)
