Flood Lamp - Passenger Door Pull Handle (TSP)

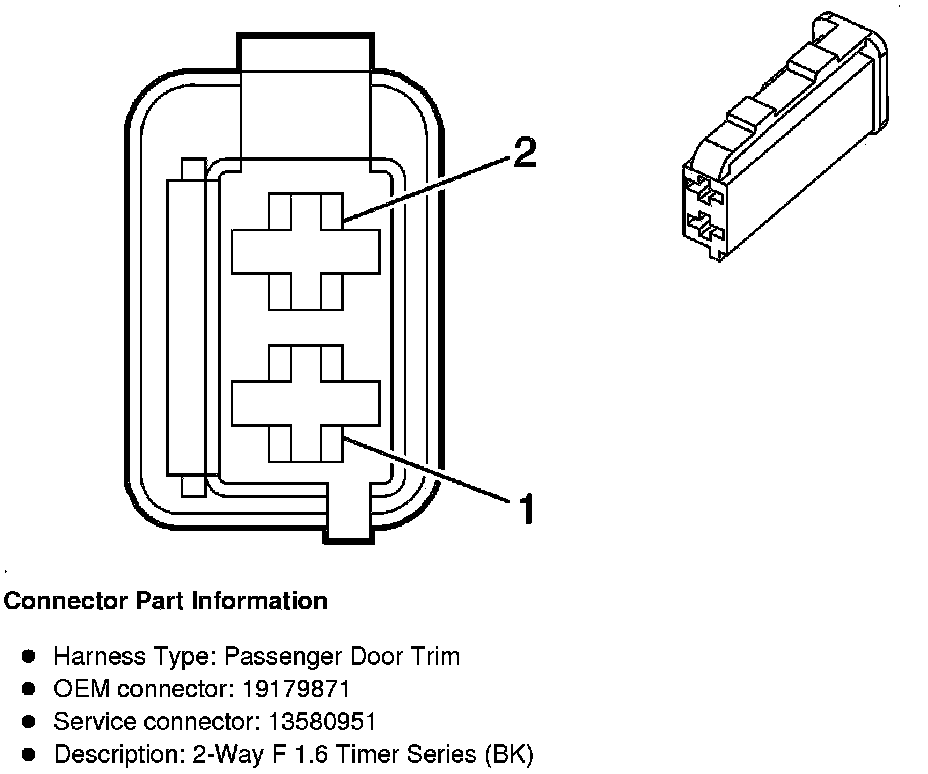

Component Connector End Views

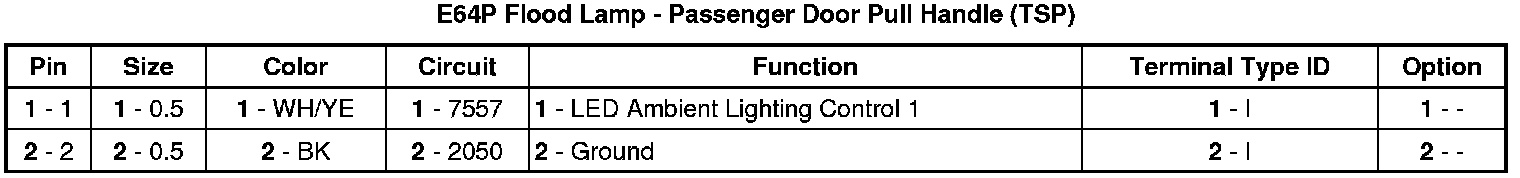

E64P Flood Lamp - Passenger Door Pull Handle (TSP)
