Flood Lamp - Passenger Door Handle

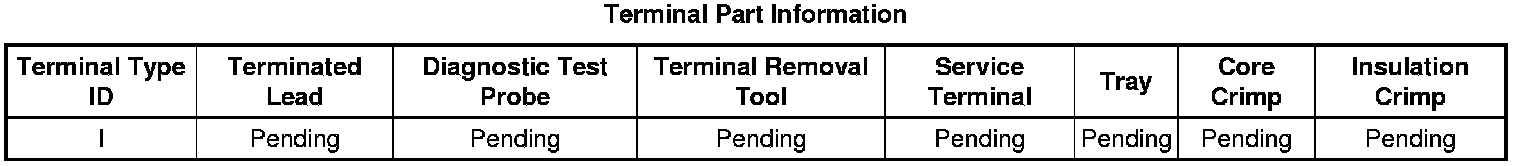

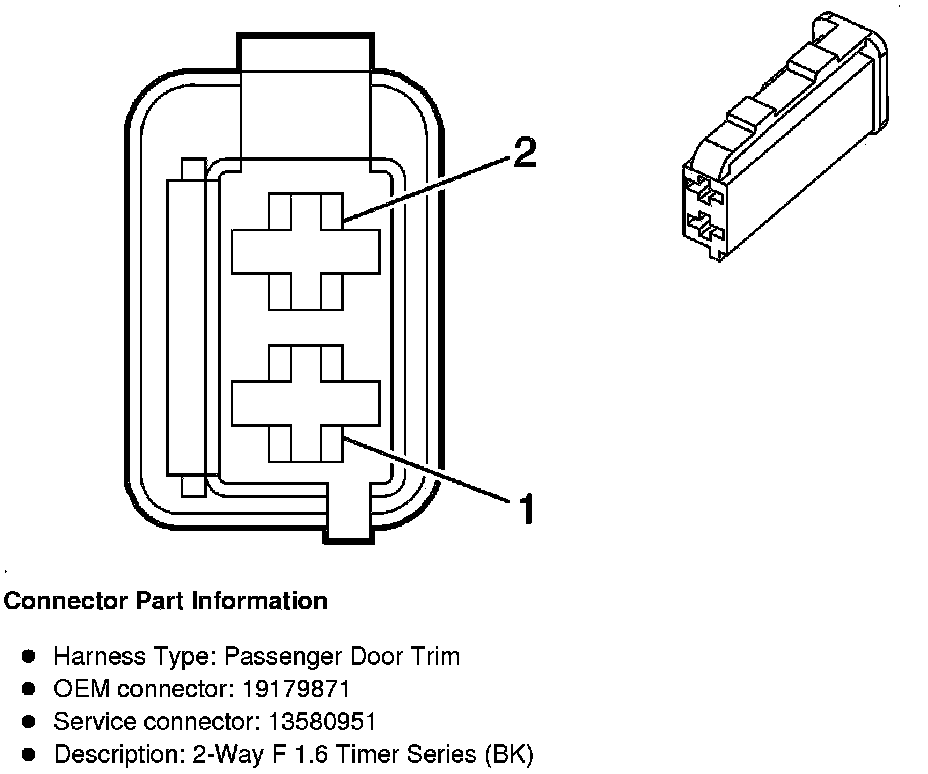

Component Connector End Views

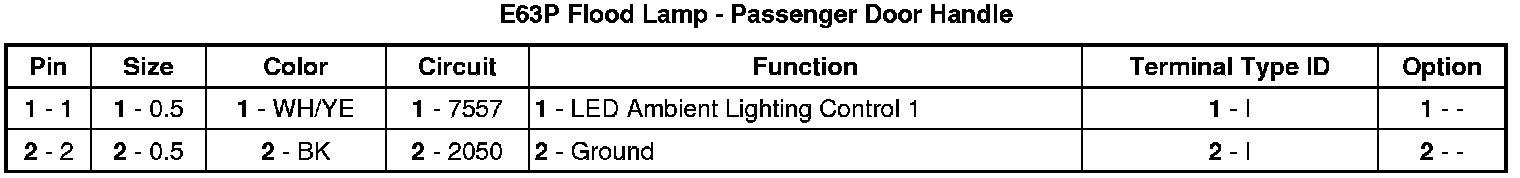

E63P Flood Lamp - Passenger Door Handle
