Dome/Reading Lamps - Right Front

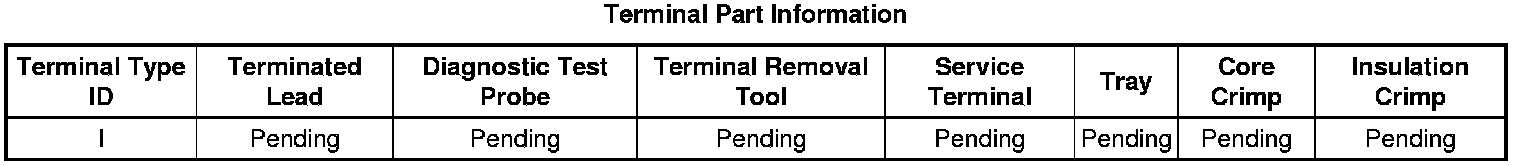

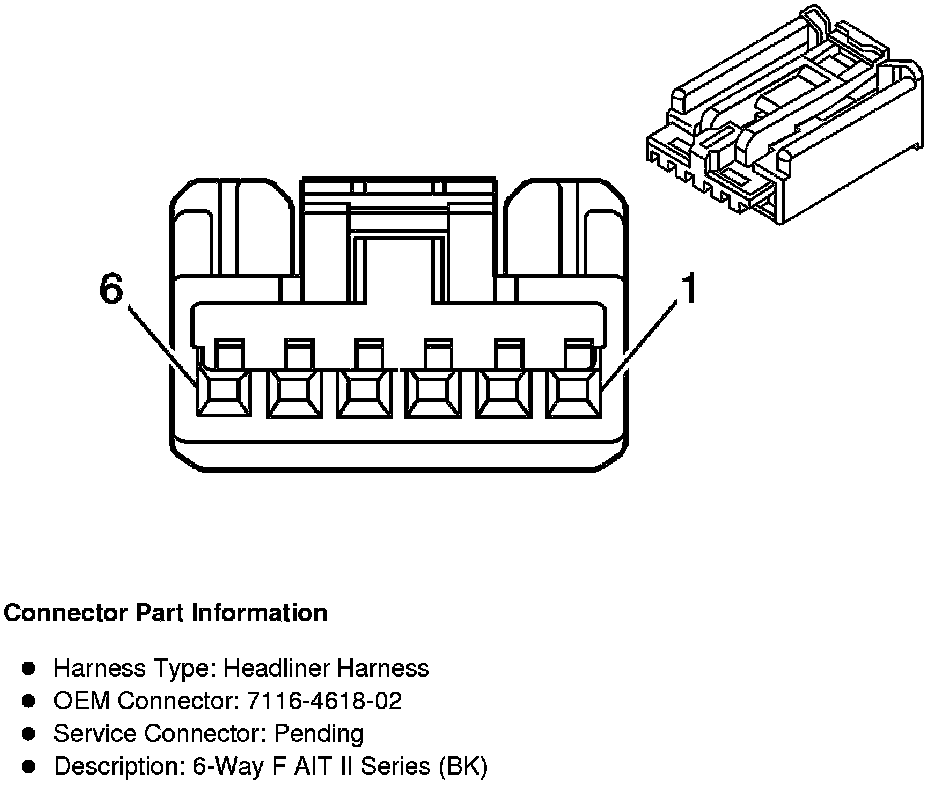

Component Connector End Views

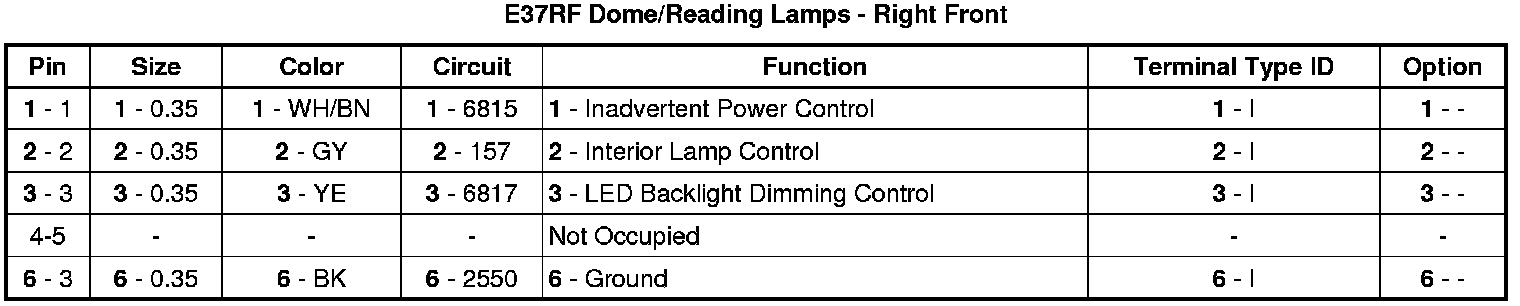

E37RF Dome/Reading Lamps - Right Front
