Dome/Reading Lamps - Left Rear (TRD)

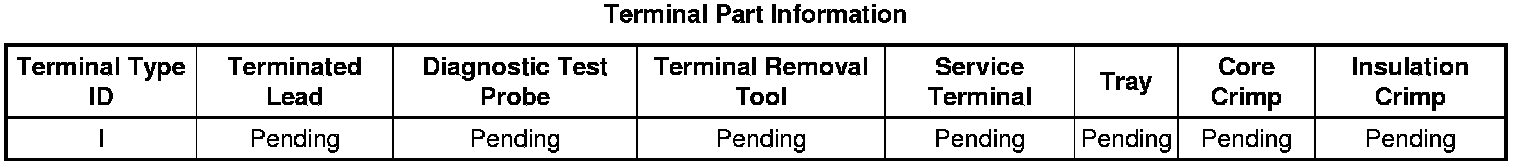

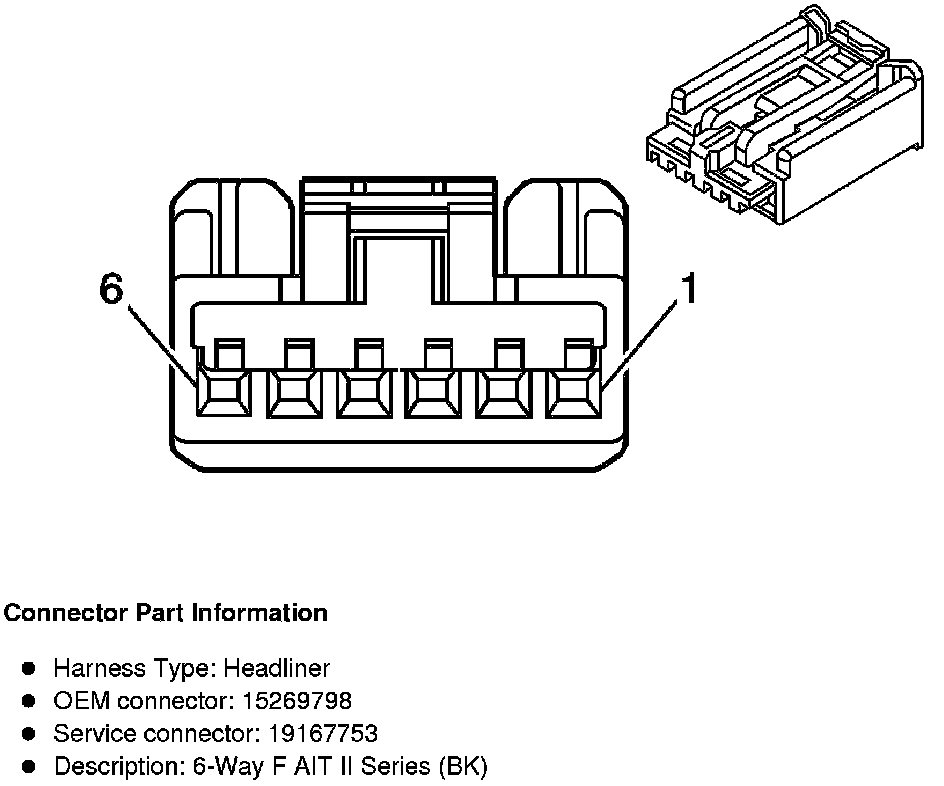

Component Connector End Views

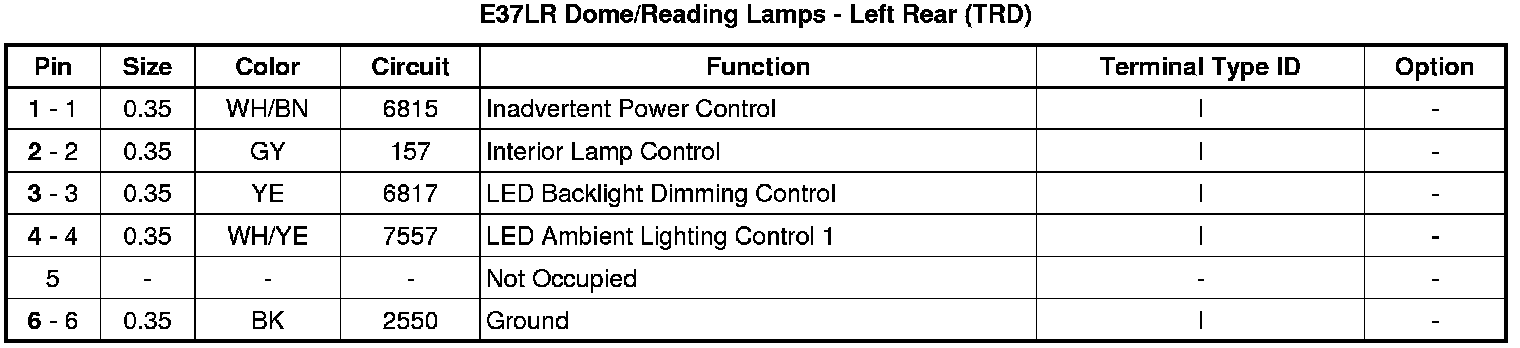

E37LR Dome/Reading Lamps - Left Rear (TRD)
