Dome/Reading Lamp - Left Roof Rail (C95)
Dome/Reading Lamp - Left Roof Rail (C95)
Component Connector End Views

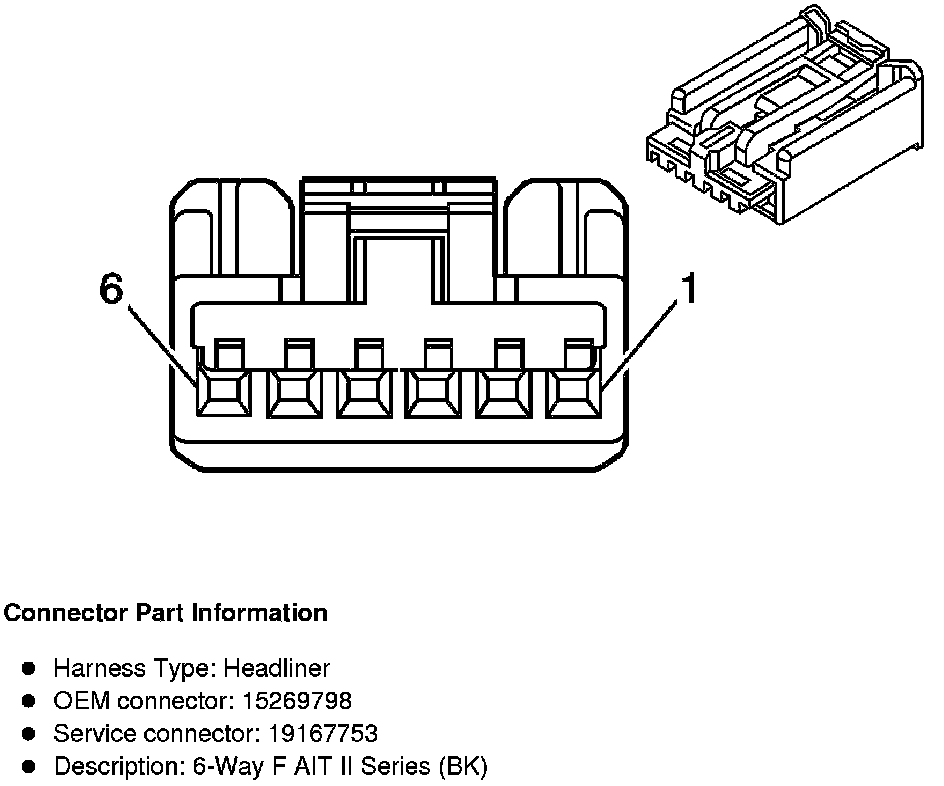

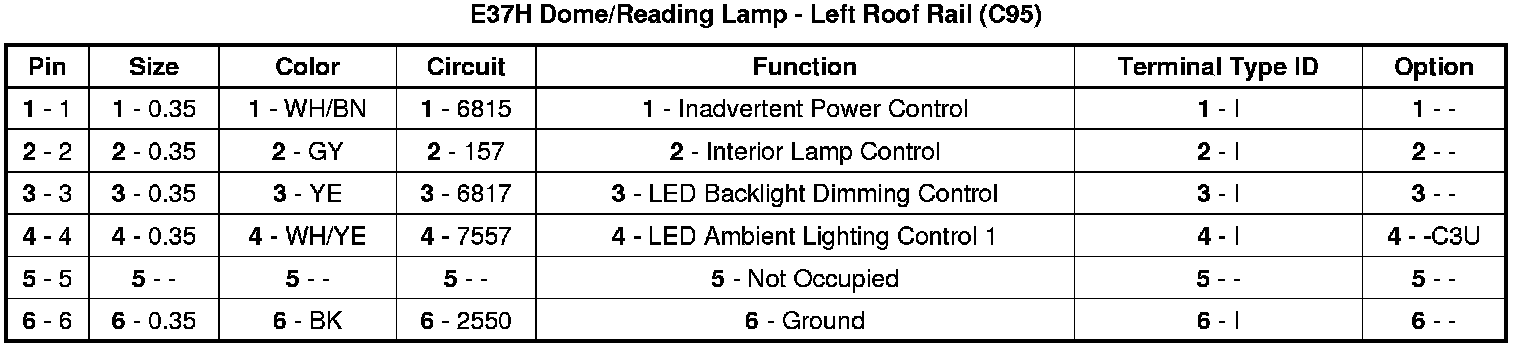

E37H Dome/Reading Lamp - Left Roof Rail (C95)
