Connector End Views By Name
>>
Daytime Running Lamp - Auxiliary Right (9H8)
Daytime Running Lamp - Auxiliary Right (9H8)
Component Connector End Views

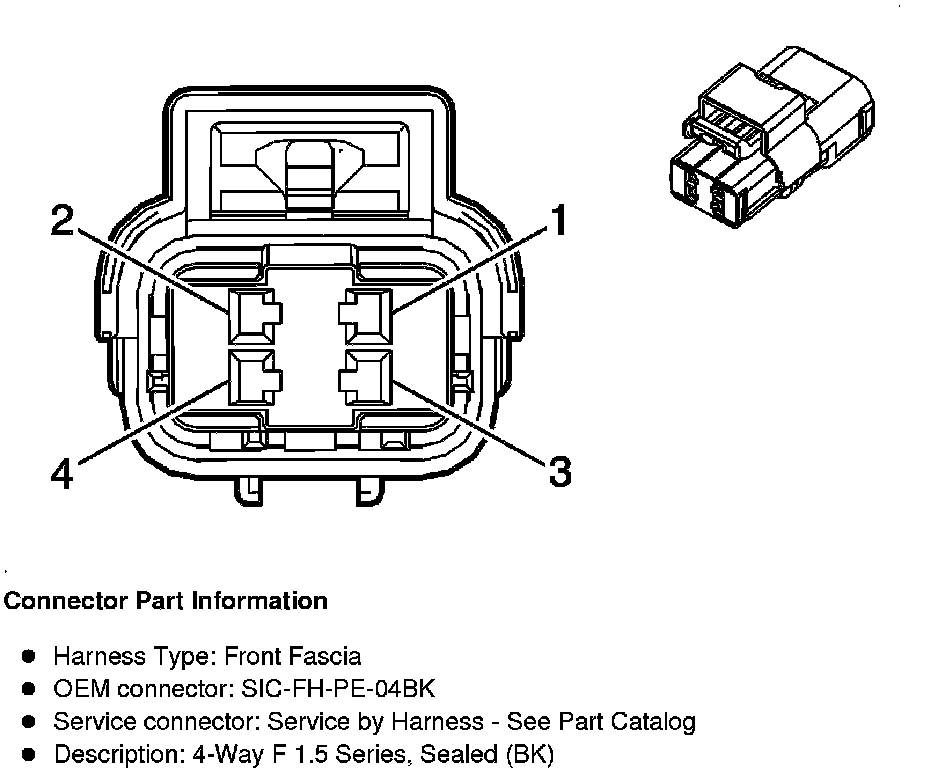

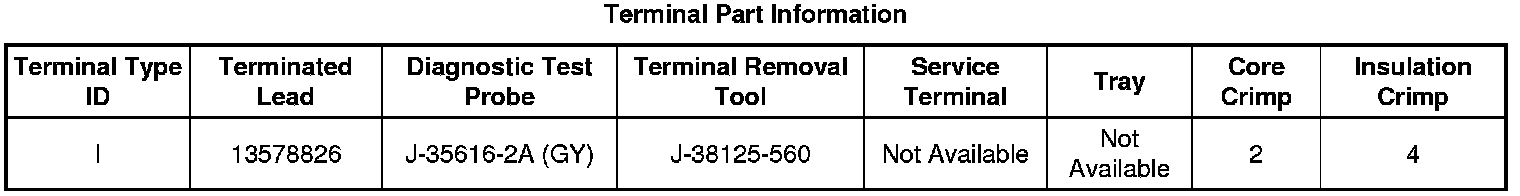

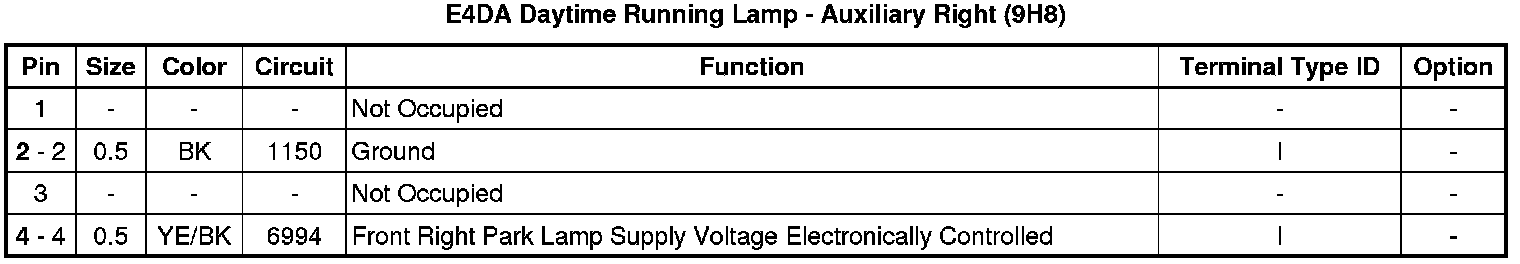

E4DA Daytime Running Lamp - Auxiliary Right (9H8)
