Daytime Running Lamp - Auxiliary Left (9H8)

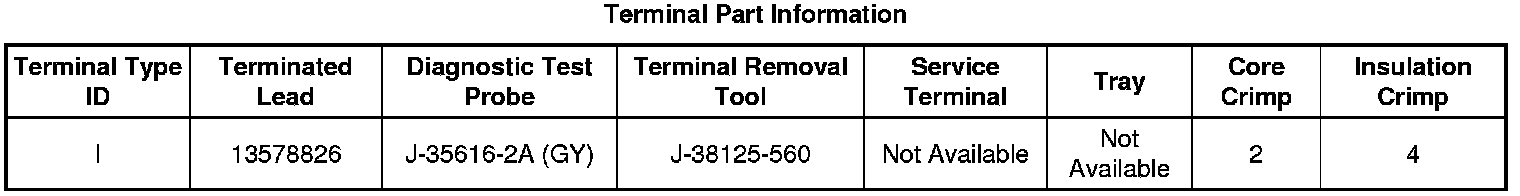

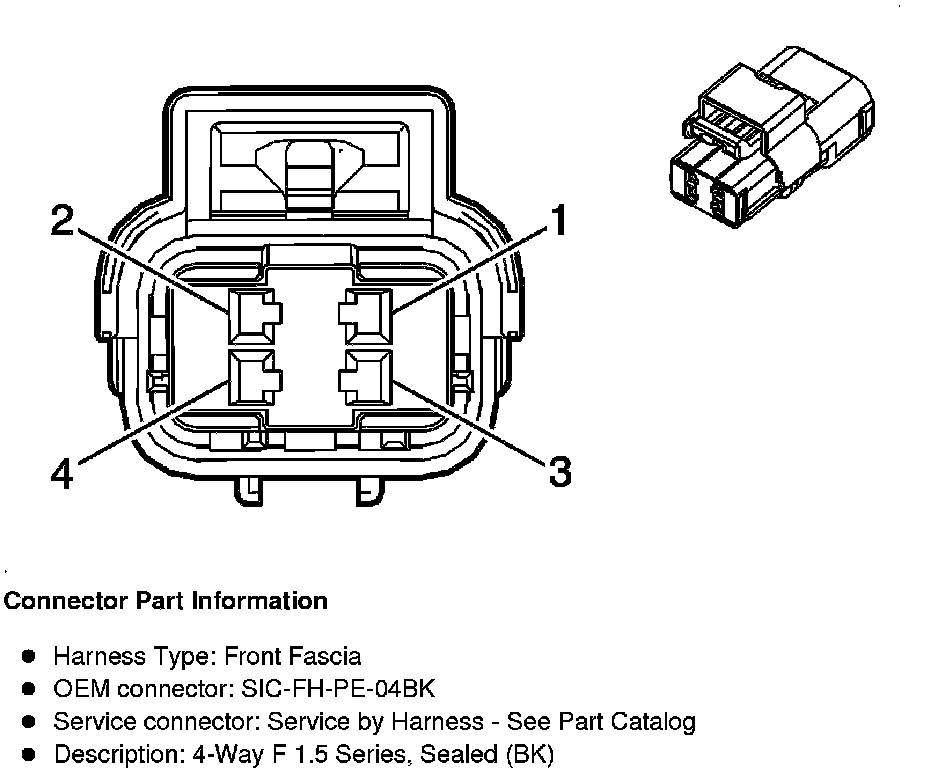

Component Connector End Views

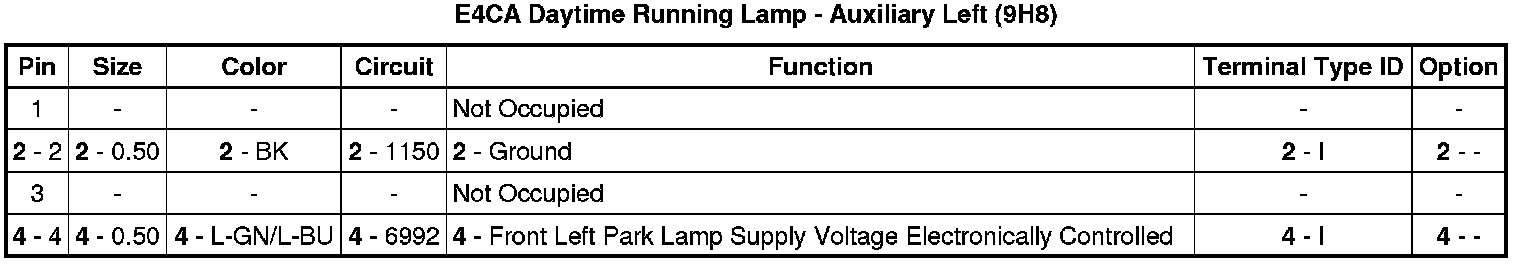

E4CA Daytime Running Lamp - Auxiliary Left (9H8)
