Air Temperature Door Actuator - Left (CJ2)

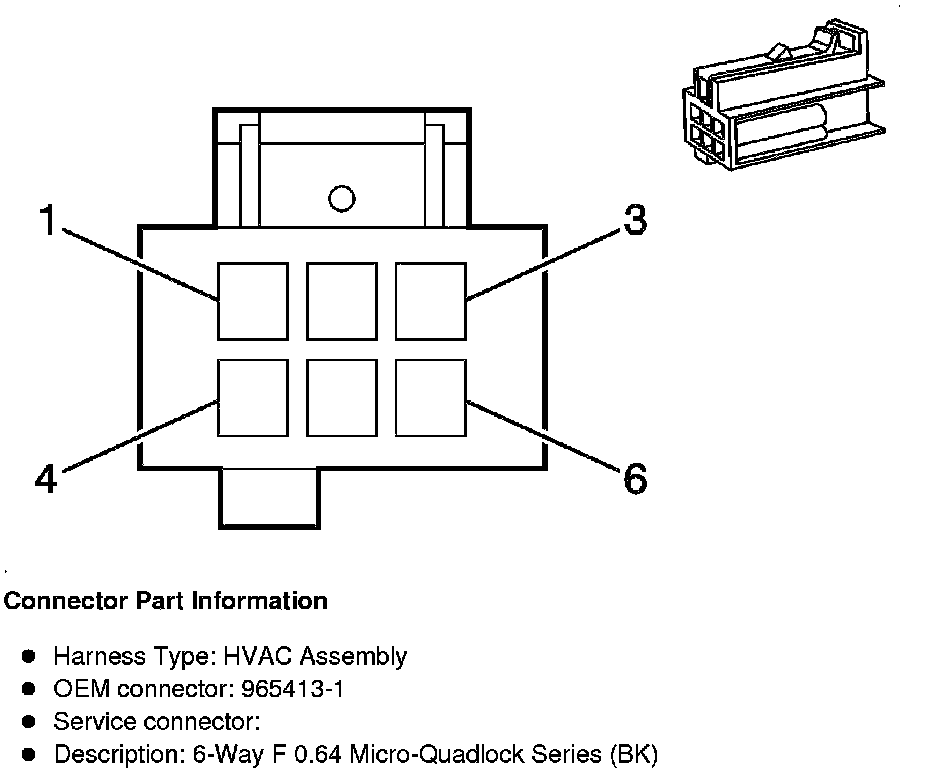

Component Connector End Views

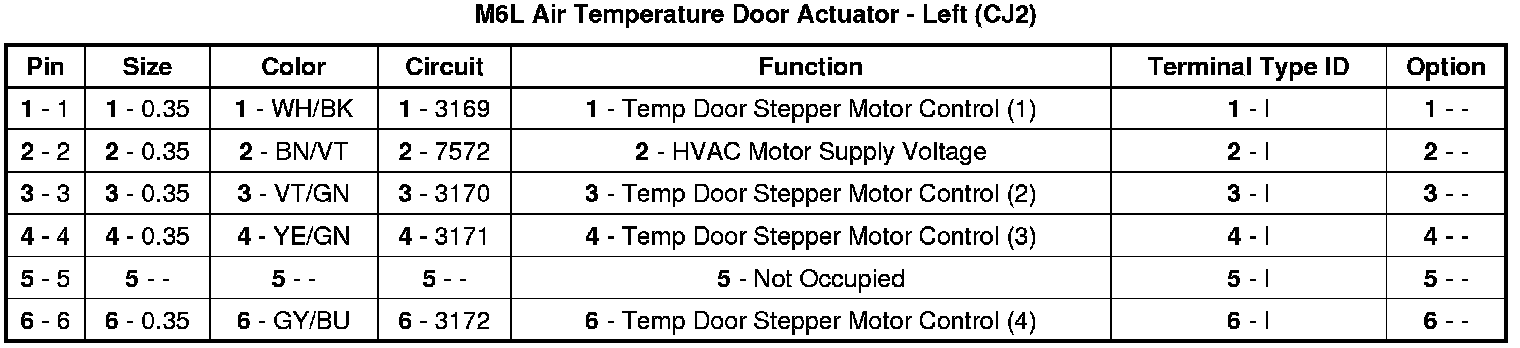

M6L Air Temperature Door Actuator - Left (CJ2)
