Accent Lamp - Right Rear Door X2 (TSP)

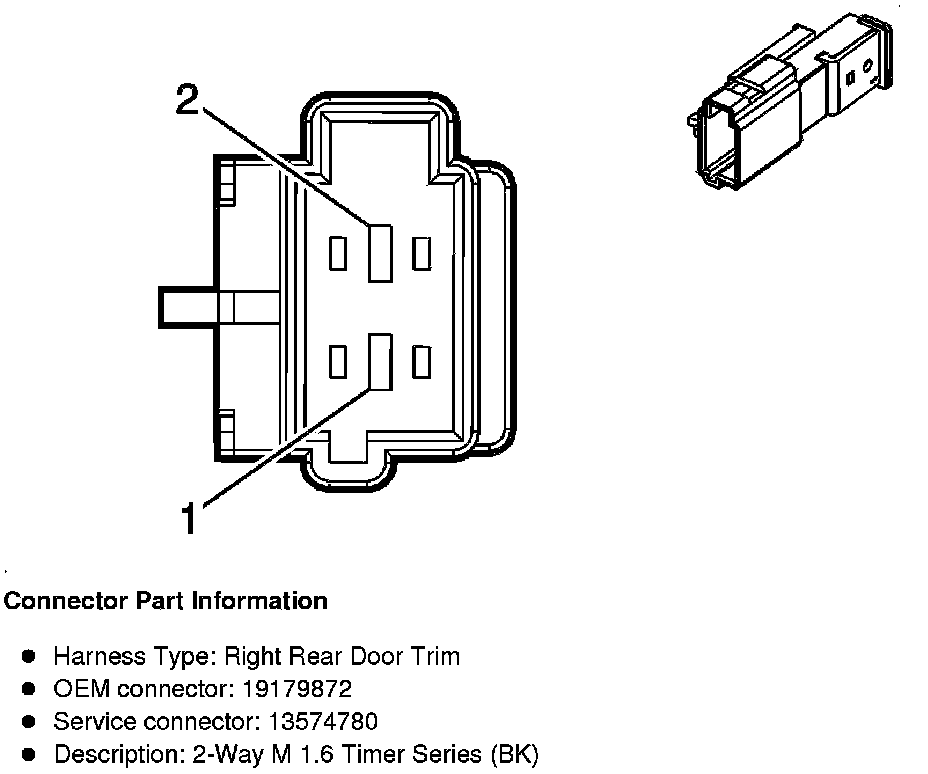

Component Connector End Views

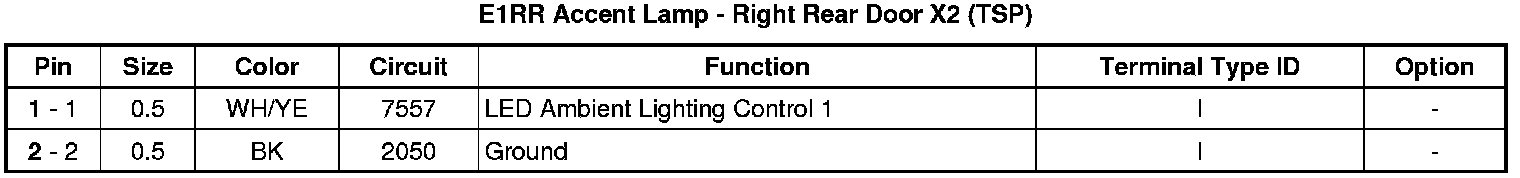

E1RR Accent Lamp - Right Rear Door X2 (TSP)
