Wheel Alignment Specifications





Note: Full tank, no passengers and placed on plane ground.

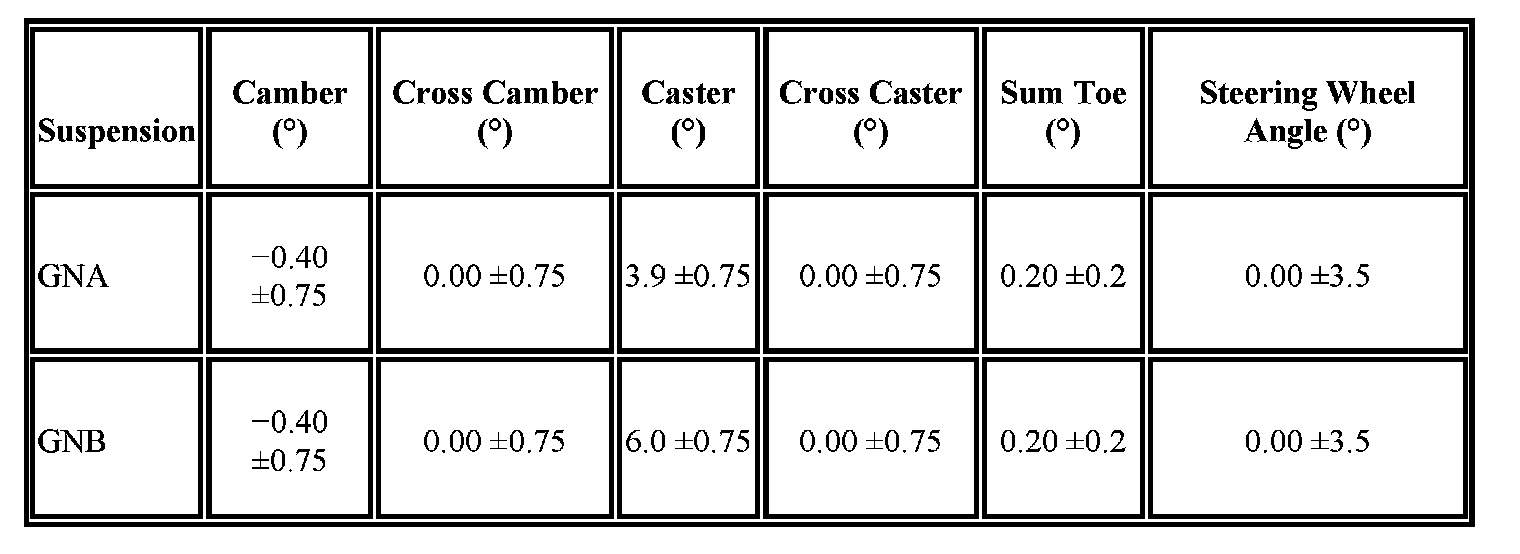

Front Suspension

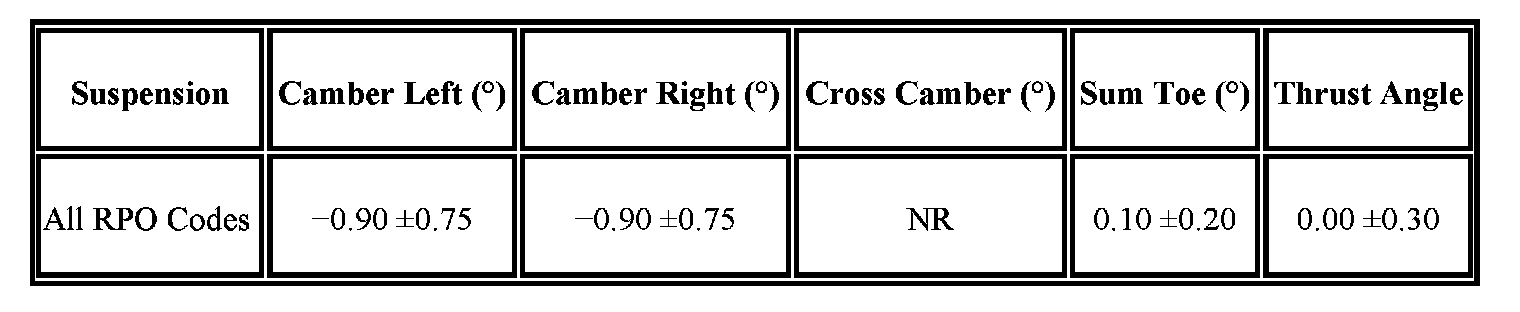

Rear Suspension
