Telescoping Wheel Switch: Diagrams

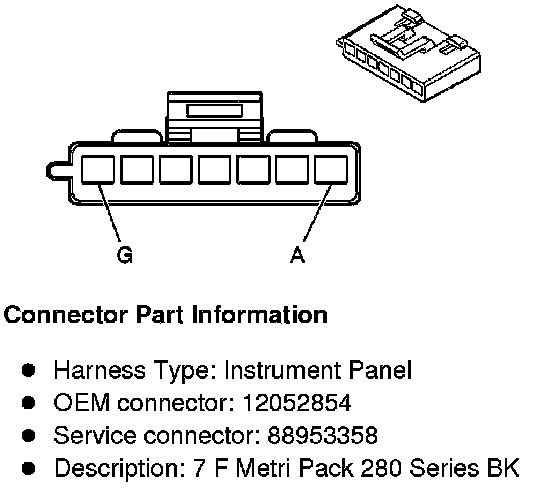

Component Connector End Views

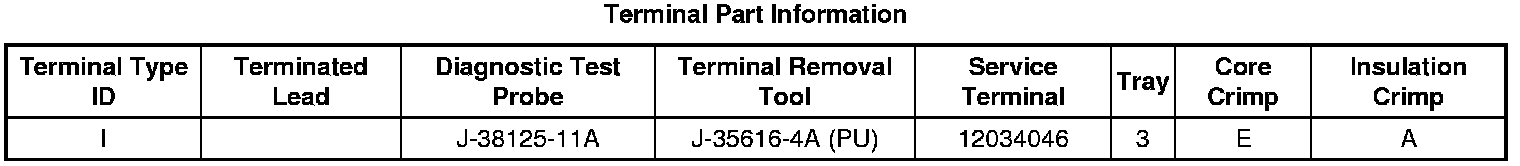

S71 Steering Column Tilt and Telescope Switch
