Air Temperature Sensor - Duct Right Lower

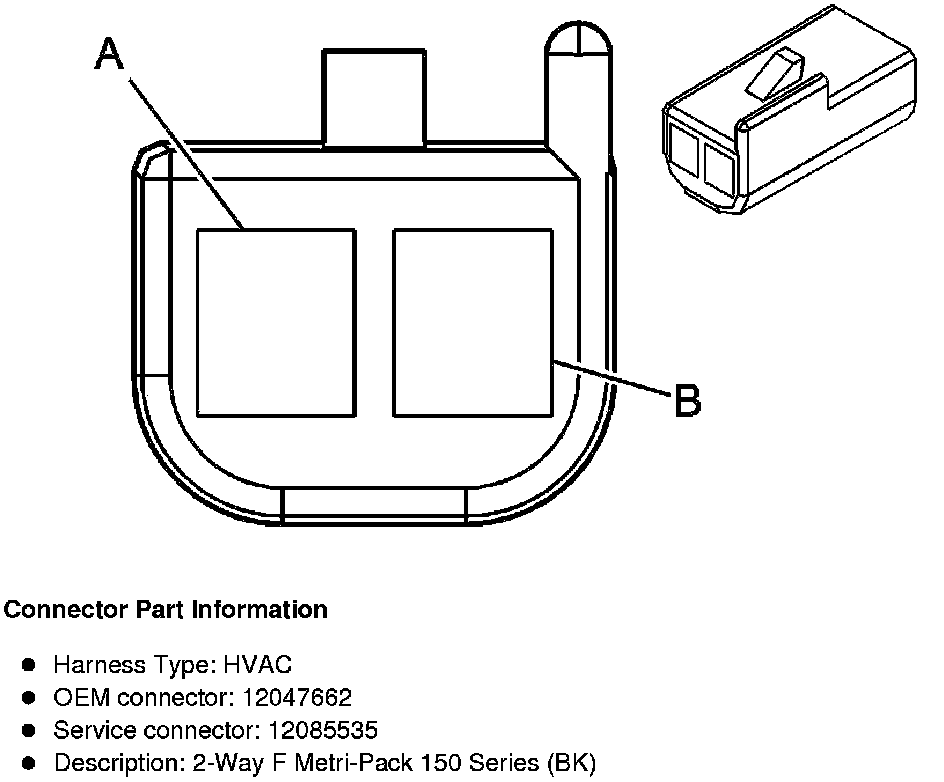

Component Connector End Views

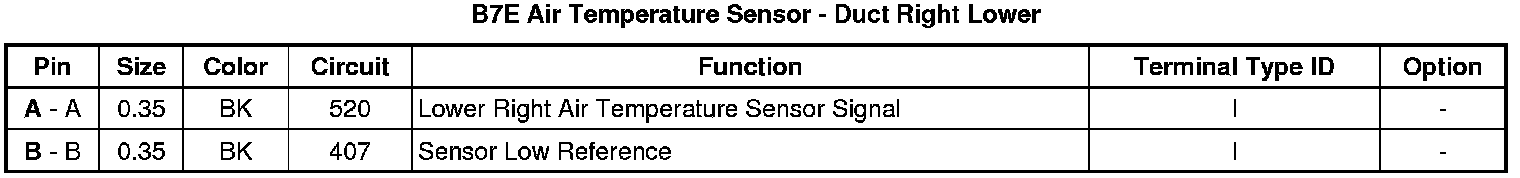

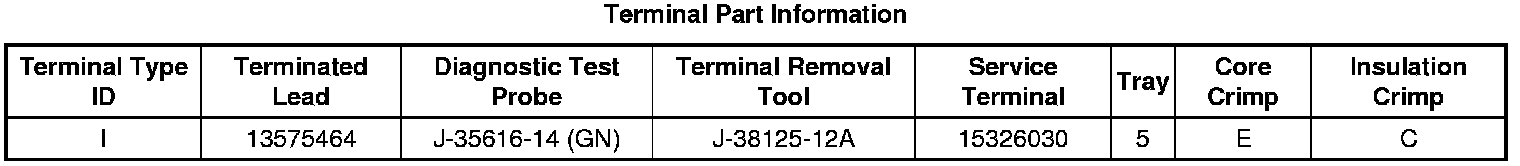

B7E Air Temperature Sensor - Duct Right Lower
