Seat Adjuster Switch - Passenger X1

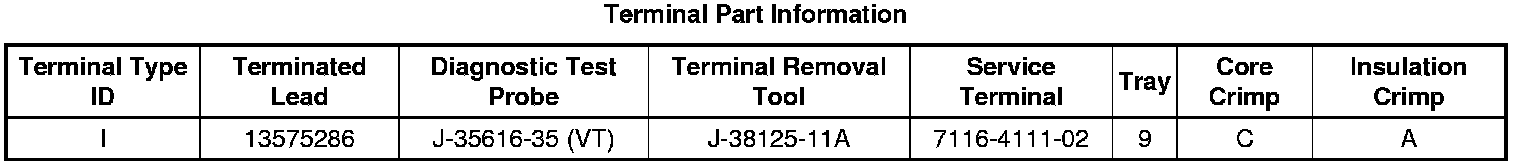

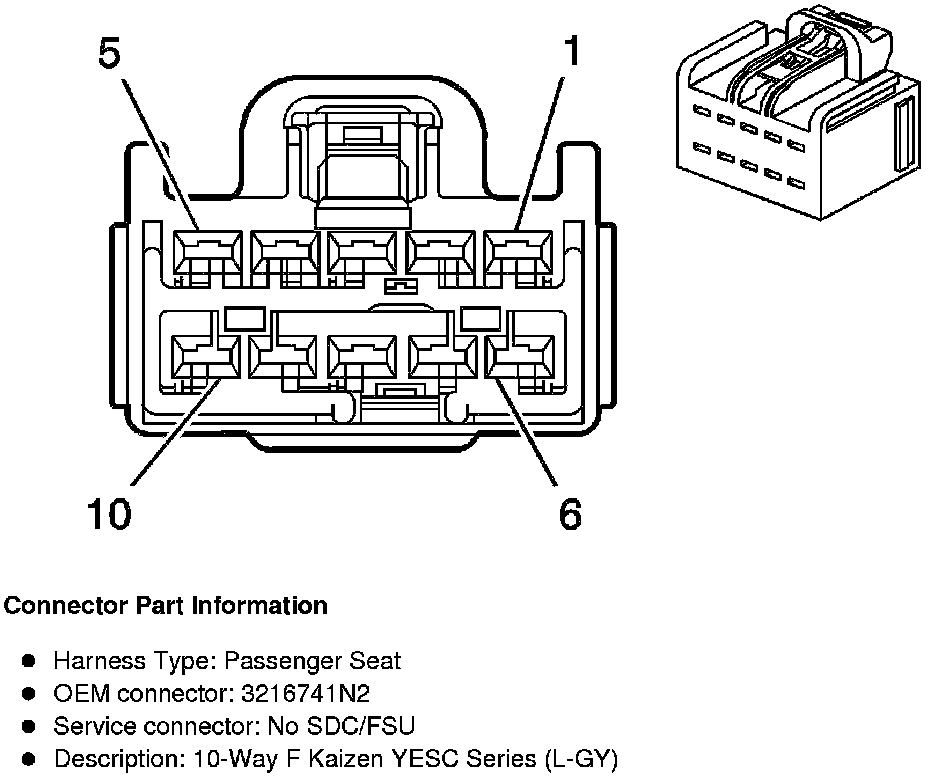

Component Connector End Views

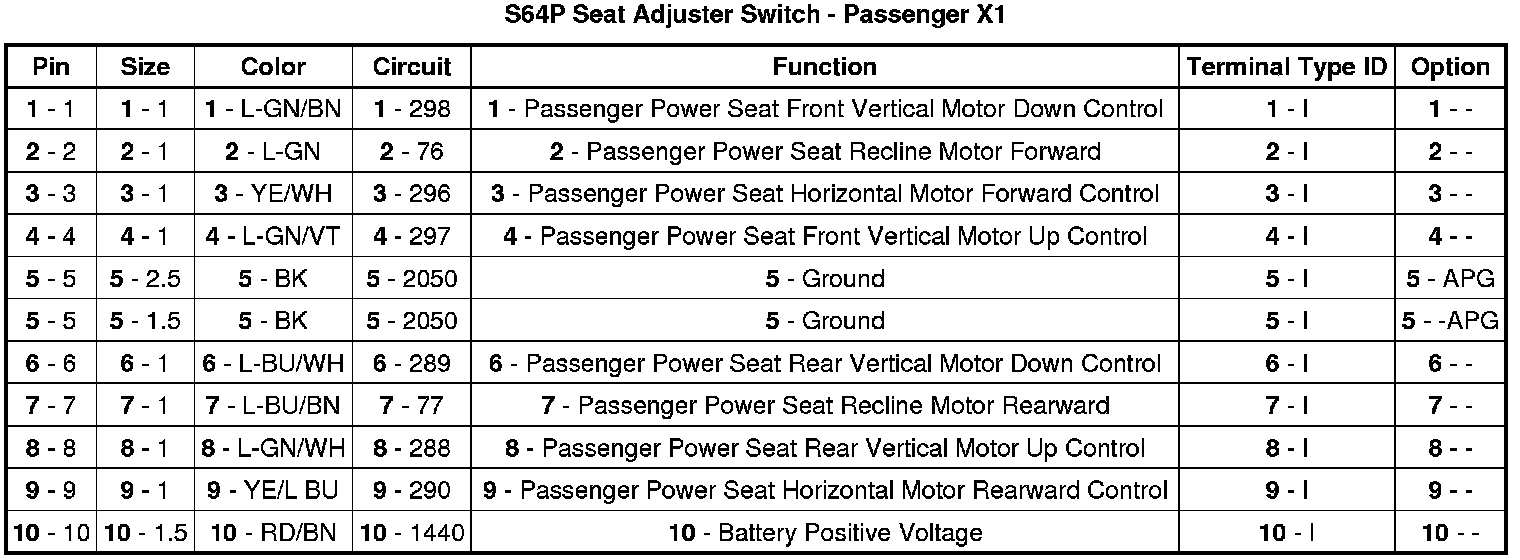

S64P Seat Adjuster Switch - Passenger X1
