Camshaft Position Sensor - Bank 2 Intake
Camshaft Position Sensor - Bank 2 Intake

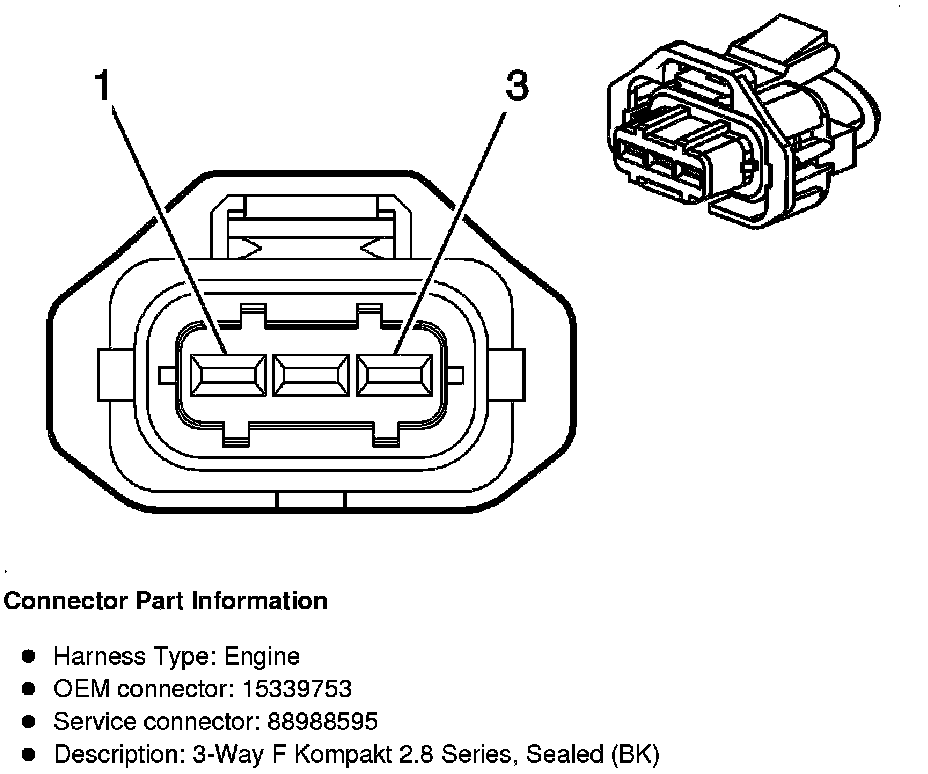

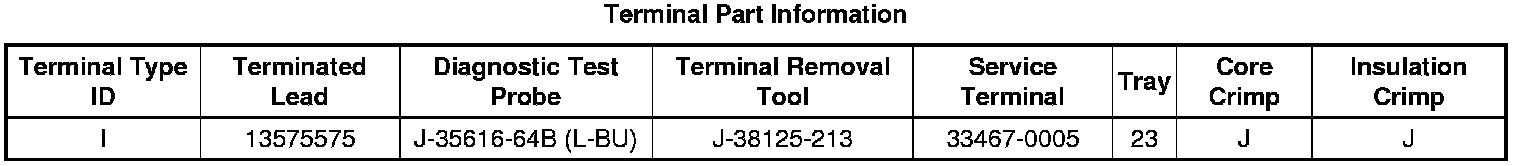

Component Connector End Views

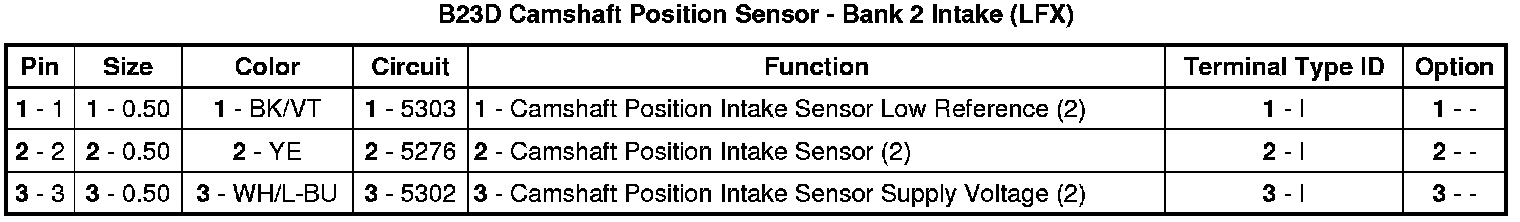

B23D
Camshaft Position Sensor
- Bank 2 Intake (LFX)
