Heated Oxygen Sensor - Bank 2 Sensor 2
Heated Oxygen Sensor - Bank 2 Sensor 2

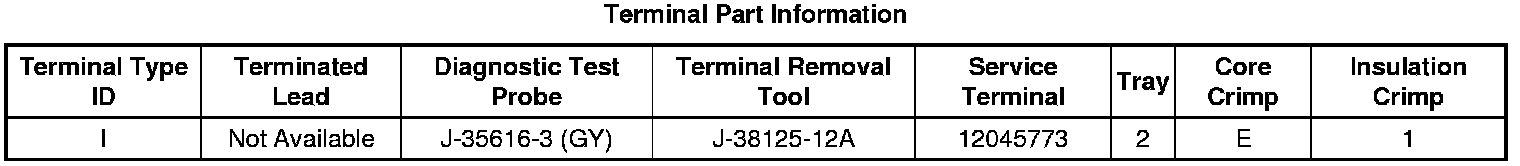

Component Connector End Views

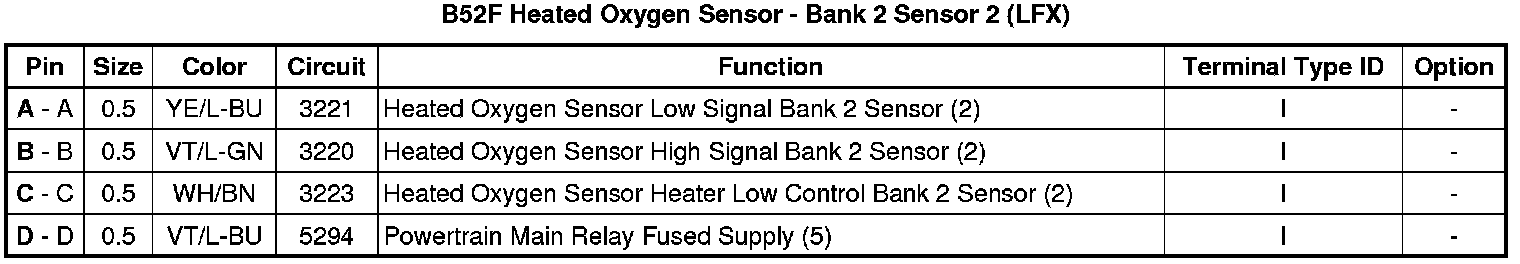

B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX)
