Camshaft Position Sensor - Bank 2 Exhaust

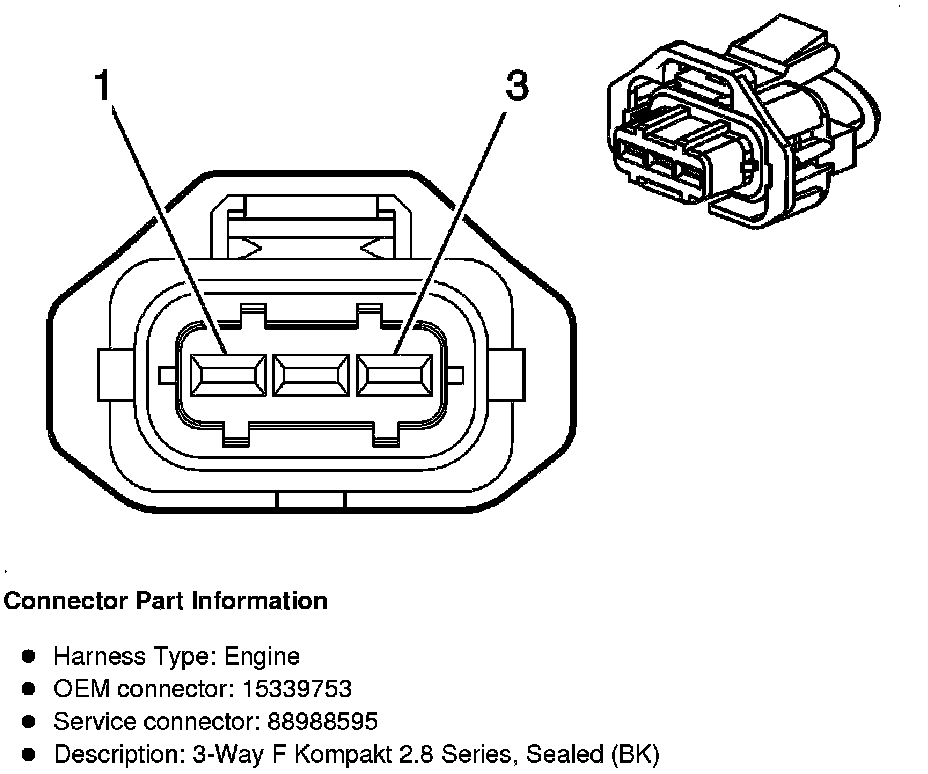

Component Connector End Views

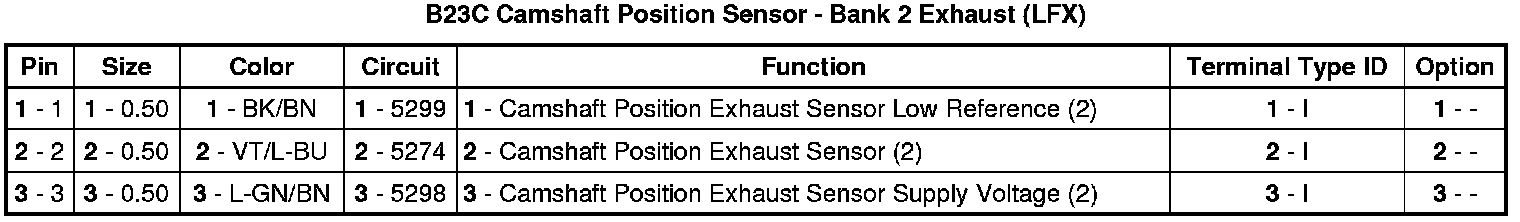

B23C Camshaft Position Sensor - Bank 2 Exhaust (LFX)
