X425




Inline Harness Connector End Views

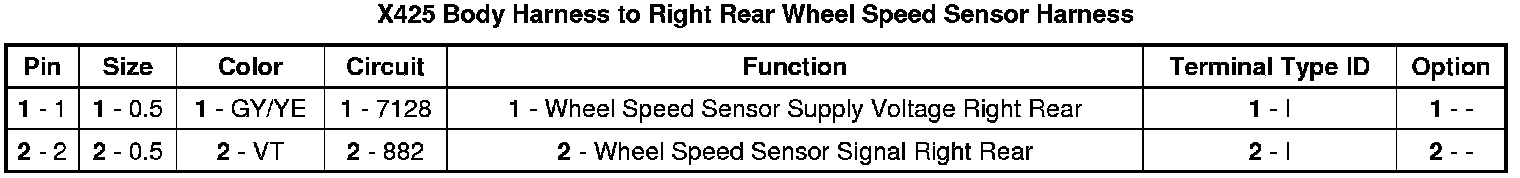

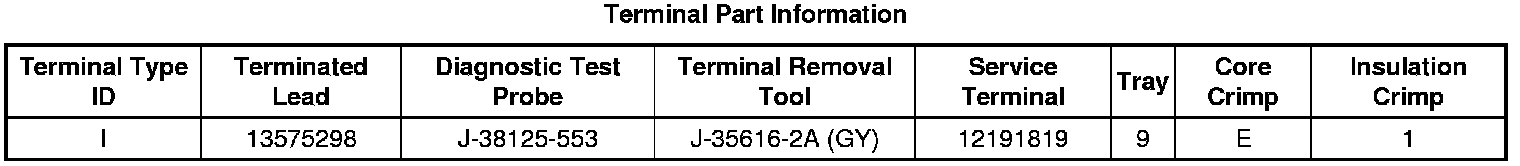

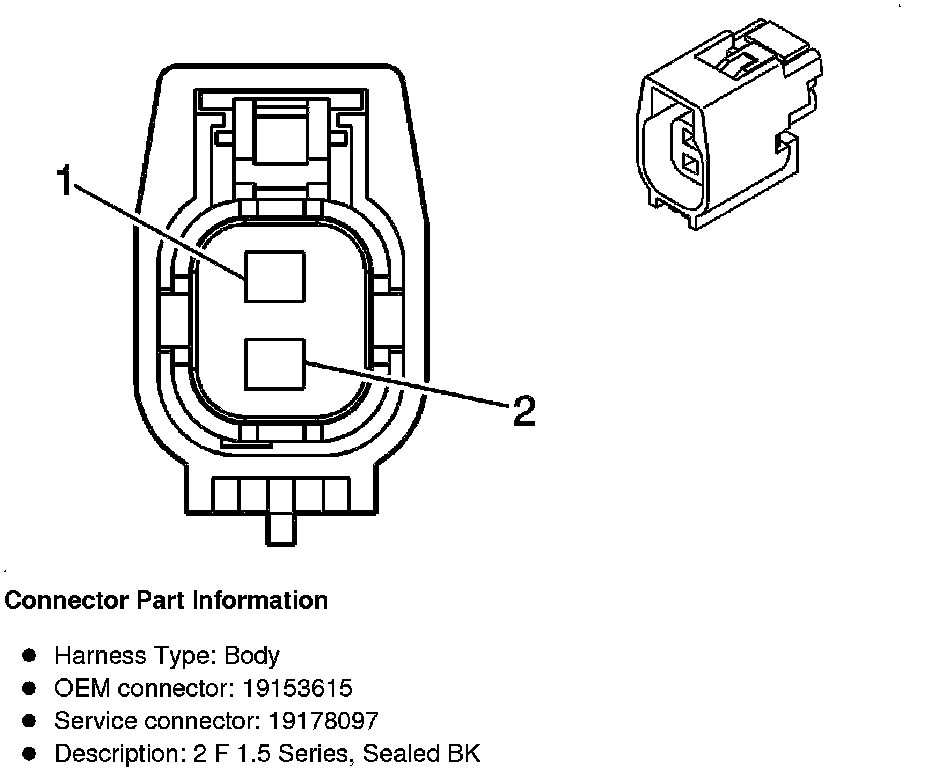

X425 Body Harness to Right Rear Wheel Speed Sensor Harness
















Inline Harness Connector End Views

X425 Body Harness to Right Rear Wheel Speed Sensor Harness
