Accent Lamp - Right Instrument Panel (TSP)
Accent Lamp - Right Instrument Panel (TSP)
Component Connector End Views

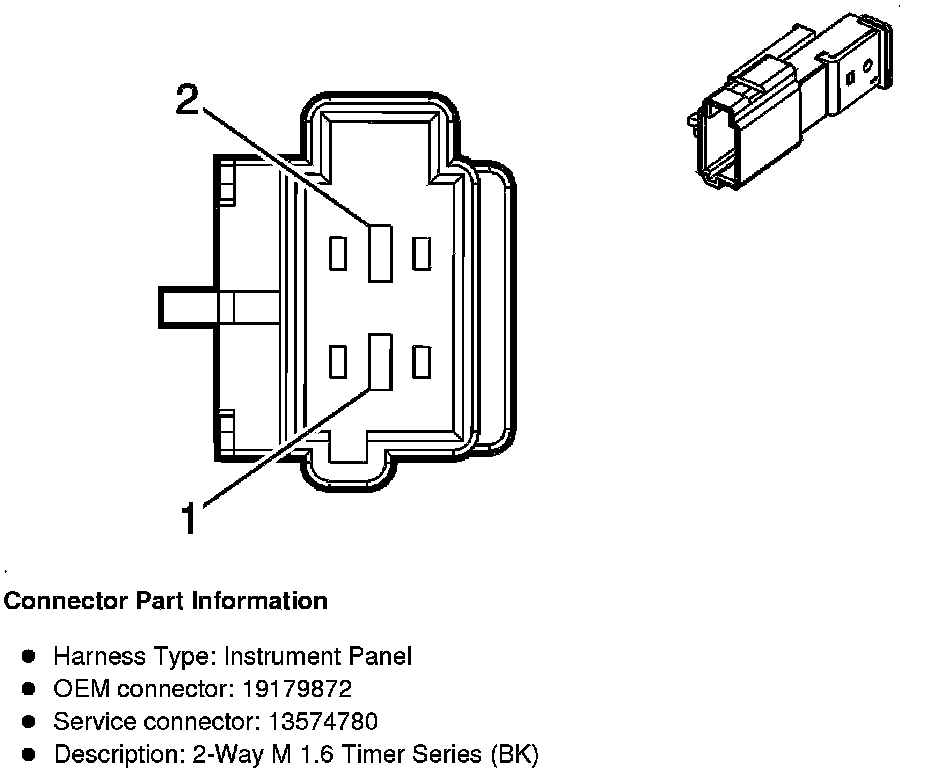

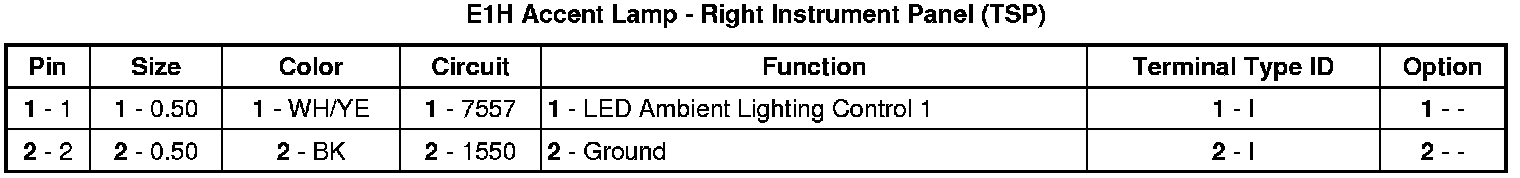

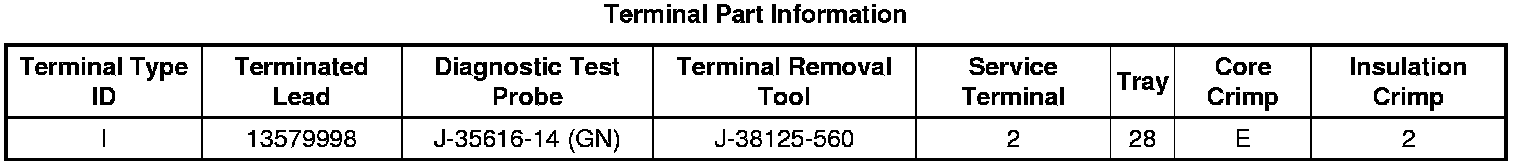

E1H Accent Lamp - Right Instrument Panel (TSP)
