Roof Components

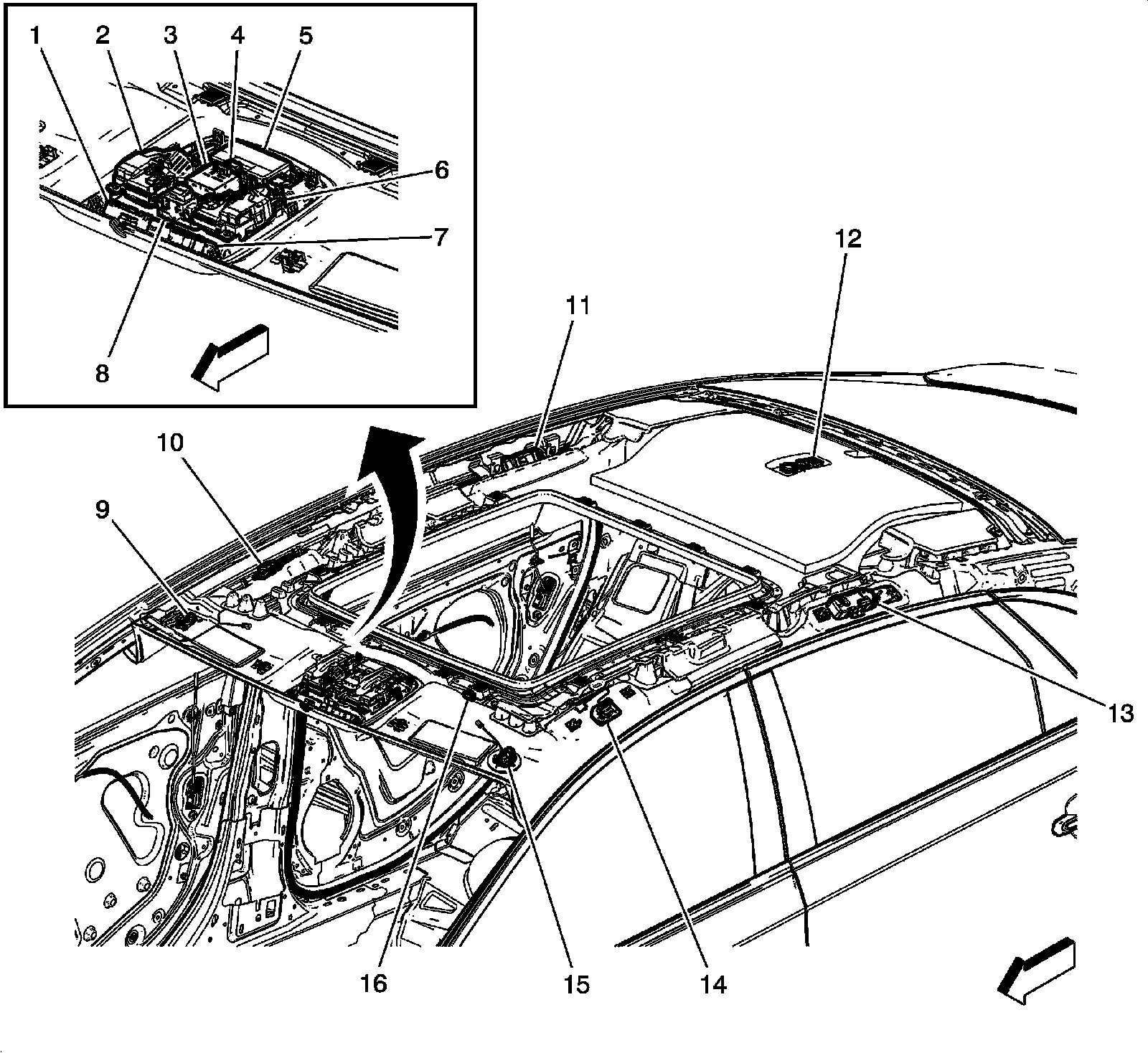

Passenger Compartment/Roof Component Views



Roof Components





1 - P14 - Passenger Airbag Disable Indicator

2 - E37RF - Dome/Reading Lamps - Right Front

3 - S72 - Sunroof Switch (C3U)

4. - E37E - Dome/Reading Lamps - Front Overhead Console

5 - S25 - Garage Door Opener

6 - E37H - Dome/Reading Lamp - Left Roof Rail

7 - S51 - Telematics Button Assembly (UE1)

8 - S12 - Dome Lamp Switch

9 - E31R - Sunshade Mirror Lamp - Right (DH6)

10 - B77RF - Radio Volume Compensator Interior Noise Microphone - Right Front (VQS)

11 - E37J - Dome/Reading Lamp - Right Rear Rail

12 - B77R - Radio Volume Compensator Interior Noise Microphone - Rear (VQS)

13 - E37H - Dome/Reading Lamp - Right Roof Rail

14 - B77LF - Radio Volume Compensator Interior Noise Microphone - Left Front (VQS)

15 - E31L - Sunshade Mirror Lamp - Left (DH6)

16 - B24 - Cellular Phone Microphone (UE1)
