Luggage Compartment/Rear of Vehicle Components (3 of 3)

Luggage Compartment/Rear of Vehicle Component Views

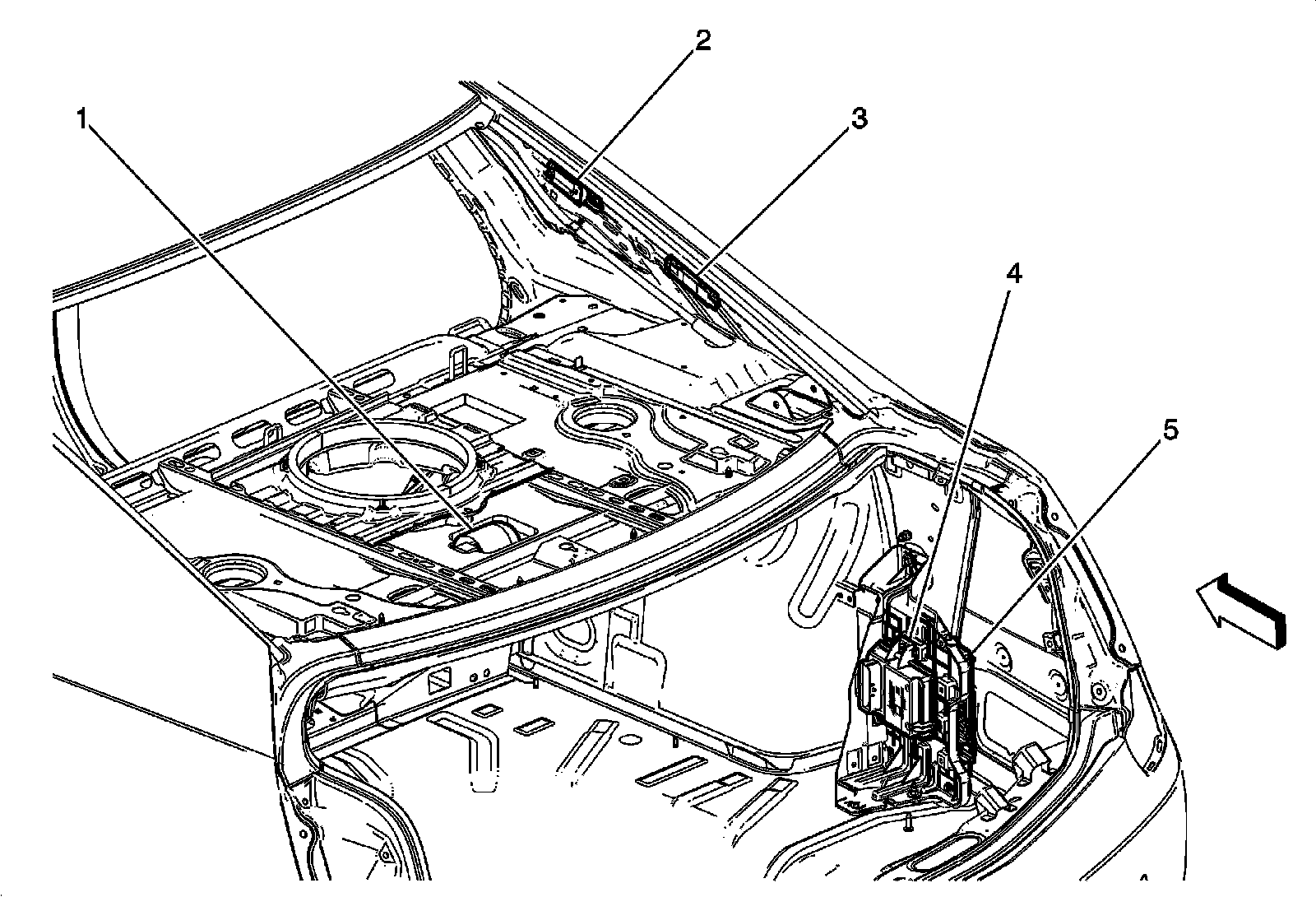

Luggage Compartment/Rear of Vehicle Components (3 of 3)





1 - E85 Rear Compartment Courtesy Lamp

2 - K46 Radio Antenna Module

3 - K84 Keyless Entry Module (ATS)

4 - K27 Fuel Pump Control Module

5 - T3 Audio Amplifier
