Luggage Compartment/Rear of Vehicle Components (1 of 3)

Luggage Compartment/Rear of Vehicle Component Views

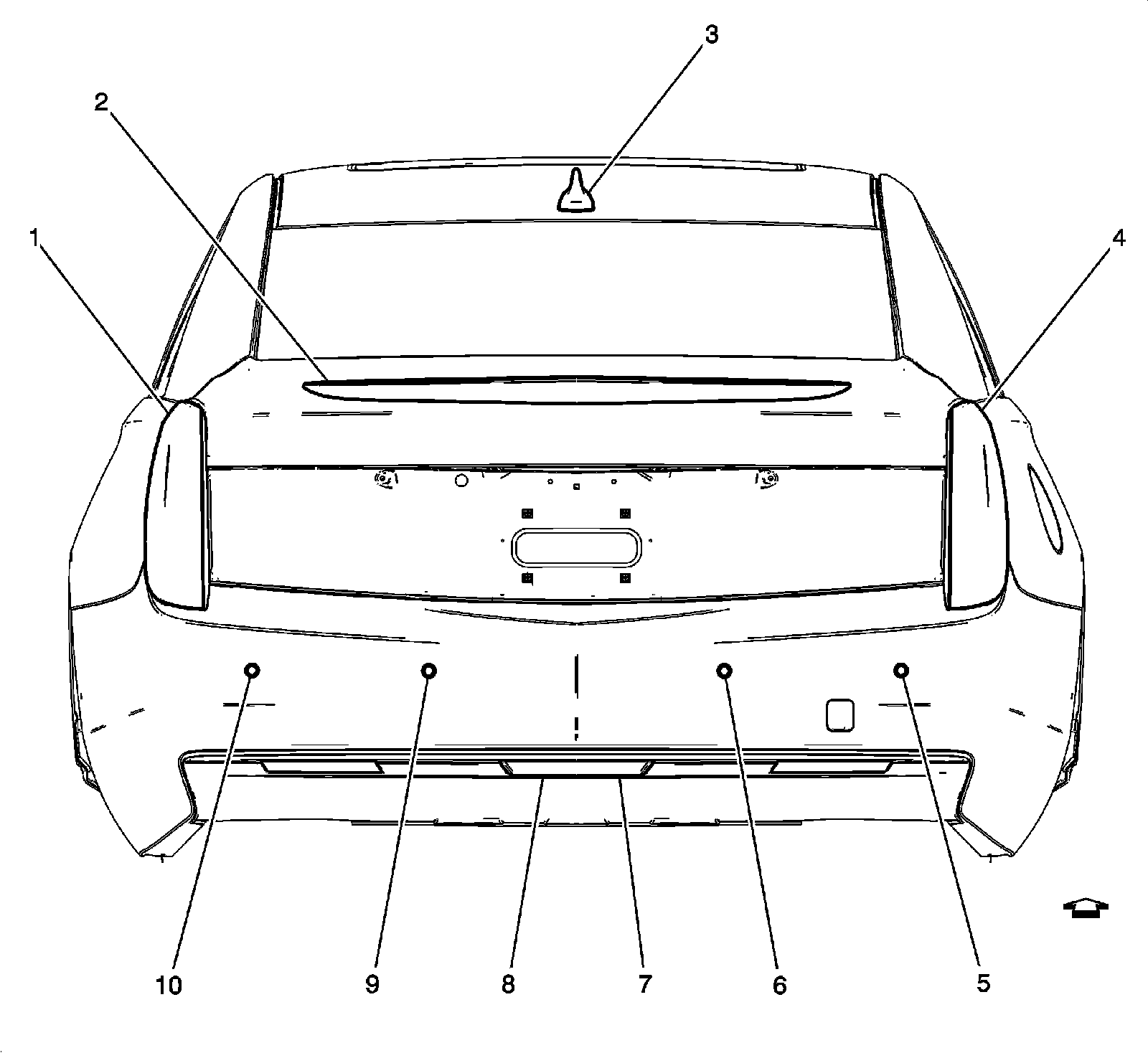

Luggage Compartment/Rear of Vehicle Components (1 of 3)





1 - E42L Tail Lamp Assembly - Left

2 - E6 Center High Mounted Stop Lamp

3 - T4G Cellular Phone Navigation and Digital Radio Antenna

4 - E42R Tail Lamp Assembly - Right

5 - B78H Rear Object Sensor - Right Outer

6 - B78F Rear Object Sensor - Right Middle

7 - E5B Backup Lamp - Right

8 - E5A Backup Lamp - Left

9 - B78E Rear Object Sensor - Left Middle

10 - B78G Rear Object Sensor - Left Outer
