Instrument Panel Components - Behind (1 of 3)

Instrument Panel/Center Console Component Views

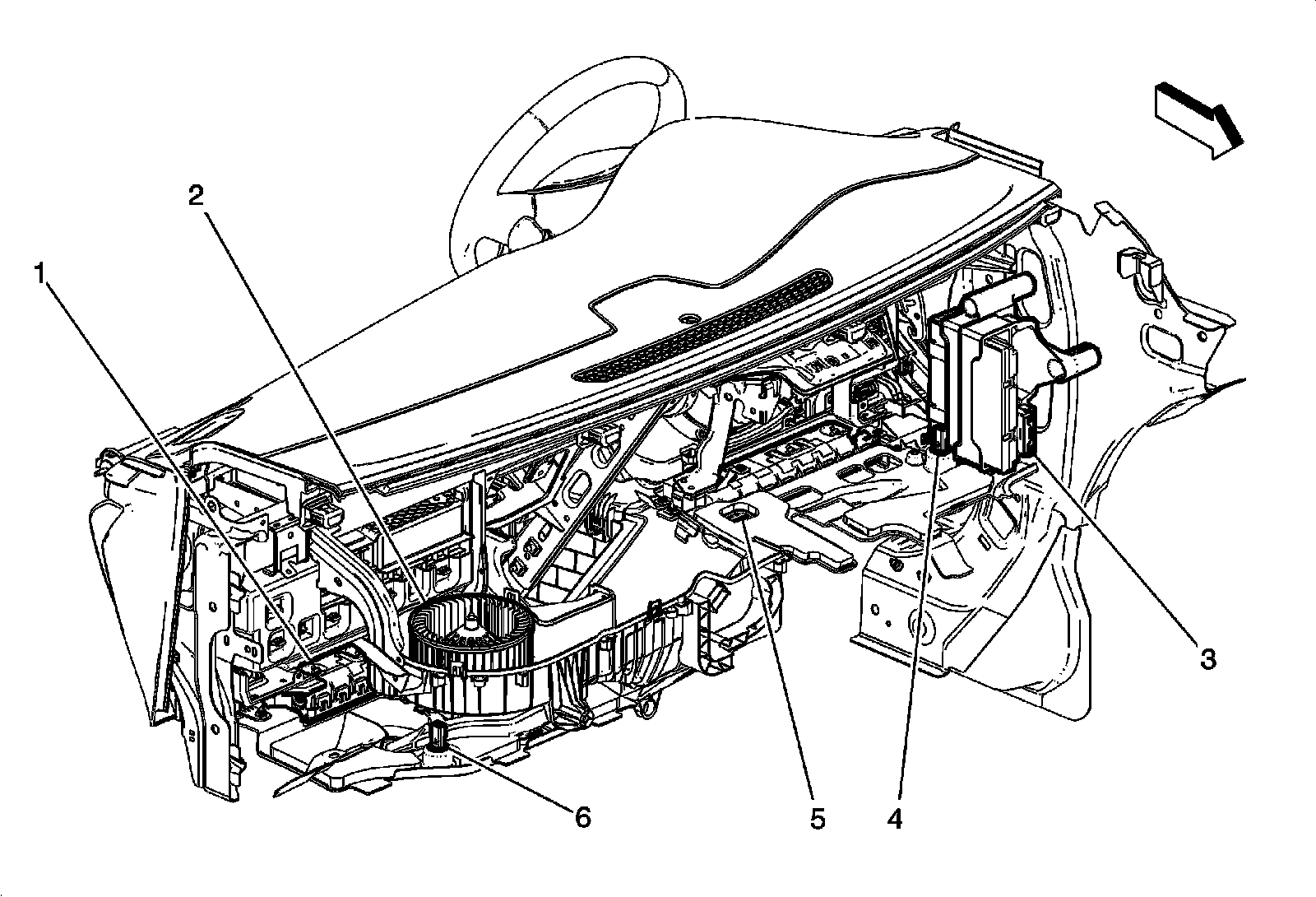

Instrument Panel Components - Behind (1 of 3)





1 - F114P - Knee Airbag - Passenger

2 - M8 - Blower Motor

3 - K9 - Body Control Module

4 - E8J - Instrument Panel Courtesy Lamp - Left

5 - F114D - Knee Airbag - Driver

6 - E8K - Instrument Panel Courtesy Lamp - Right
