Side Marker Lamps and Washer Pumps

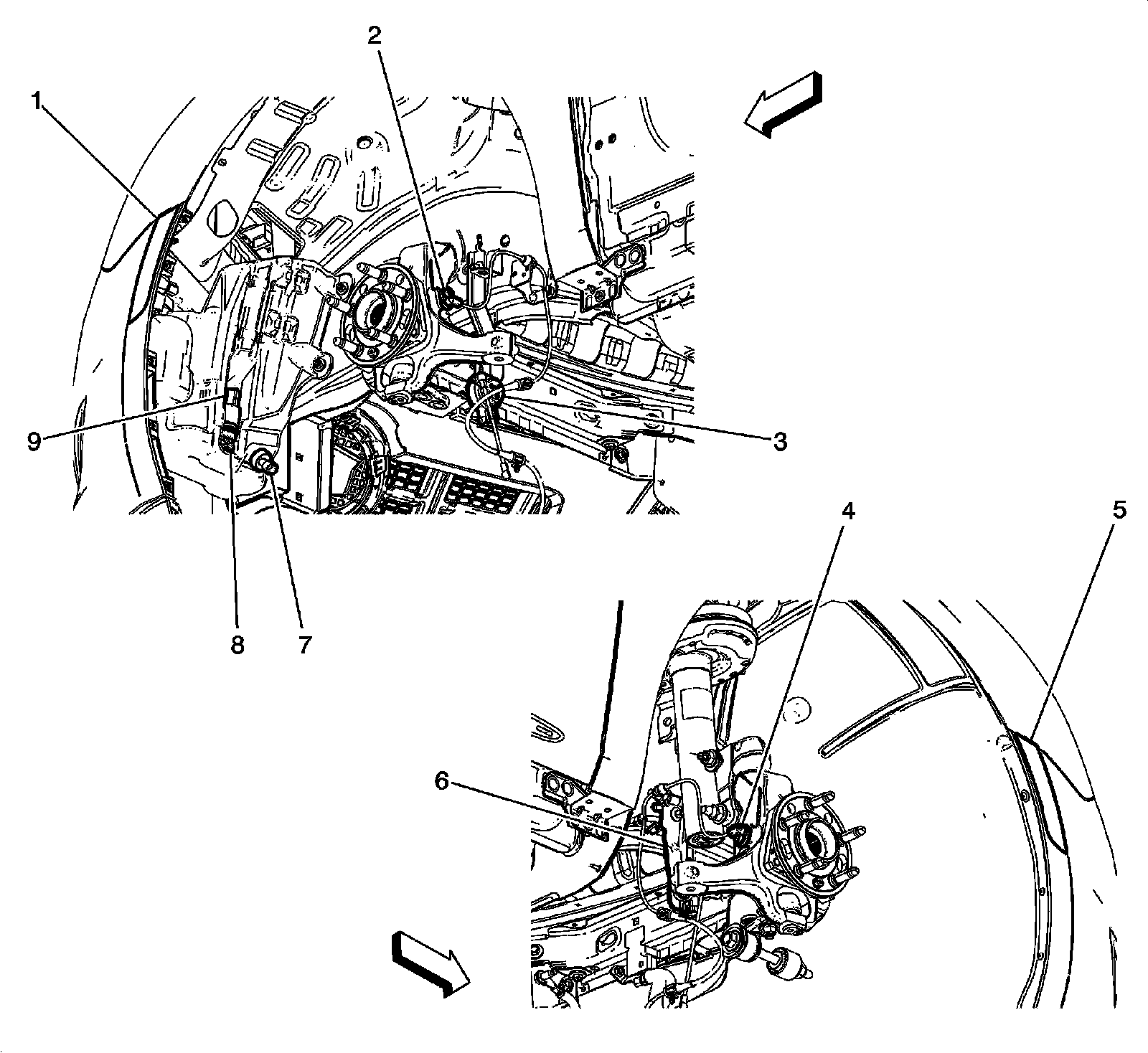

Front of Vehicle/Engine Compartment Component Views



Side Marker Lamps and Washer Pumps





1 - E2LF - Side Marker Lamp - Left Front

2 - B5LF - Wheel Speed Sensor - Left Front

3 - B152LF - Suspension Position Sensor - Left Front

4 - B5RF - Wheel Speed Sensor - Right Front

5 - E2RF - Side Marker Lamp - Right Front

6 - B152RF - Suspension Position Sensor - Right Front

7 - B118B - Windshield Washer Fluid Level Switch

8 - G16 - Headlamp Washer Pump

9 - G24 - Windshield Washer Pump
