Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Service and Repair >> Temperature Valve Actuator Replacement - Left Side

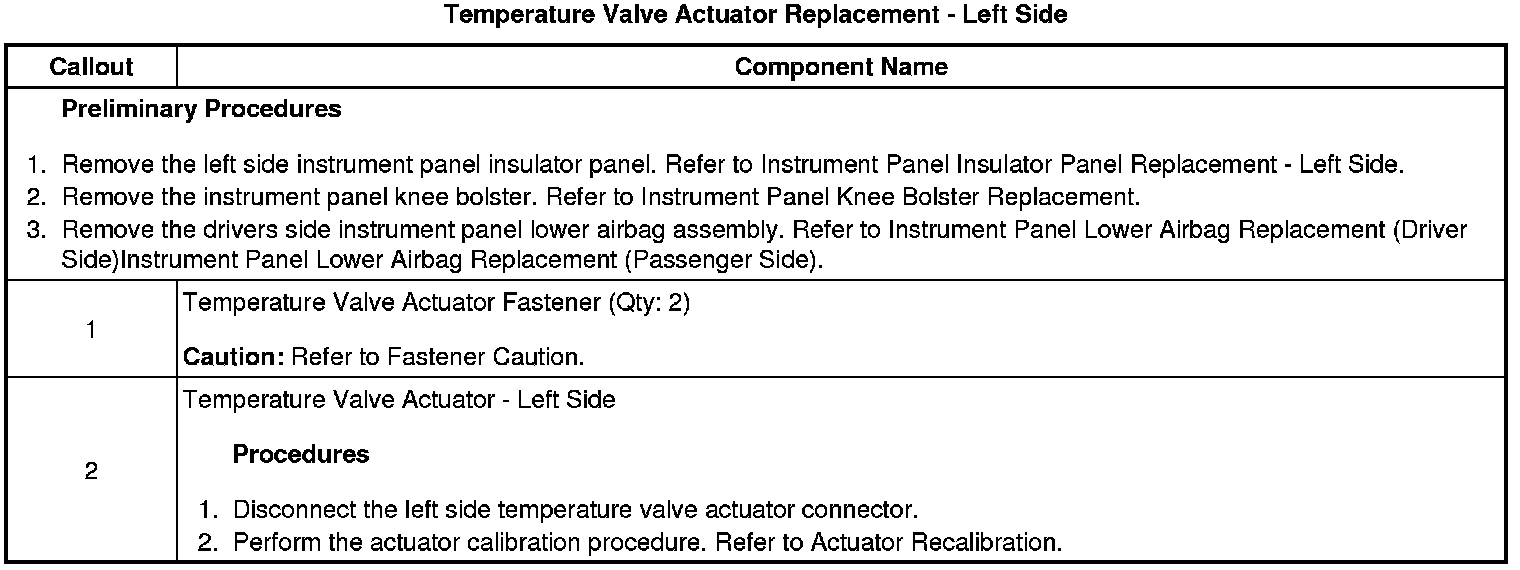

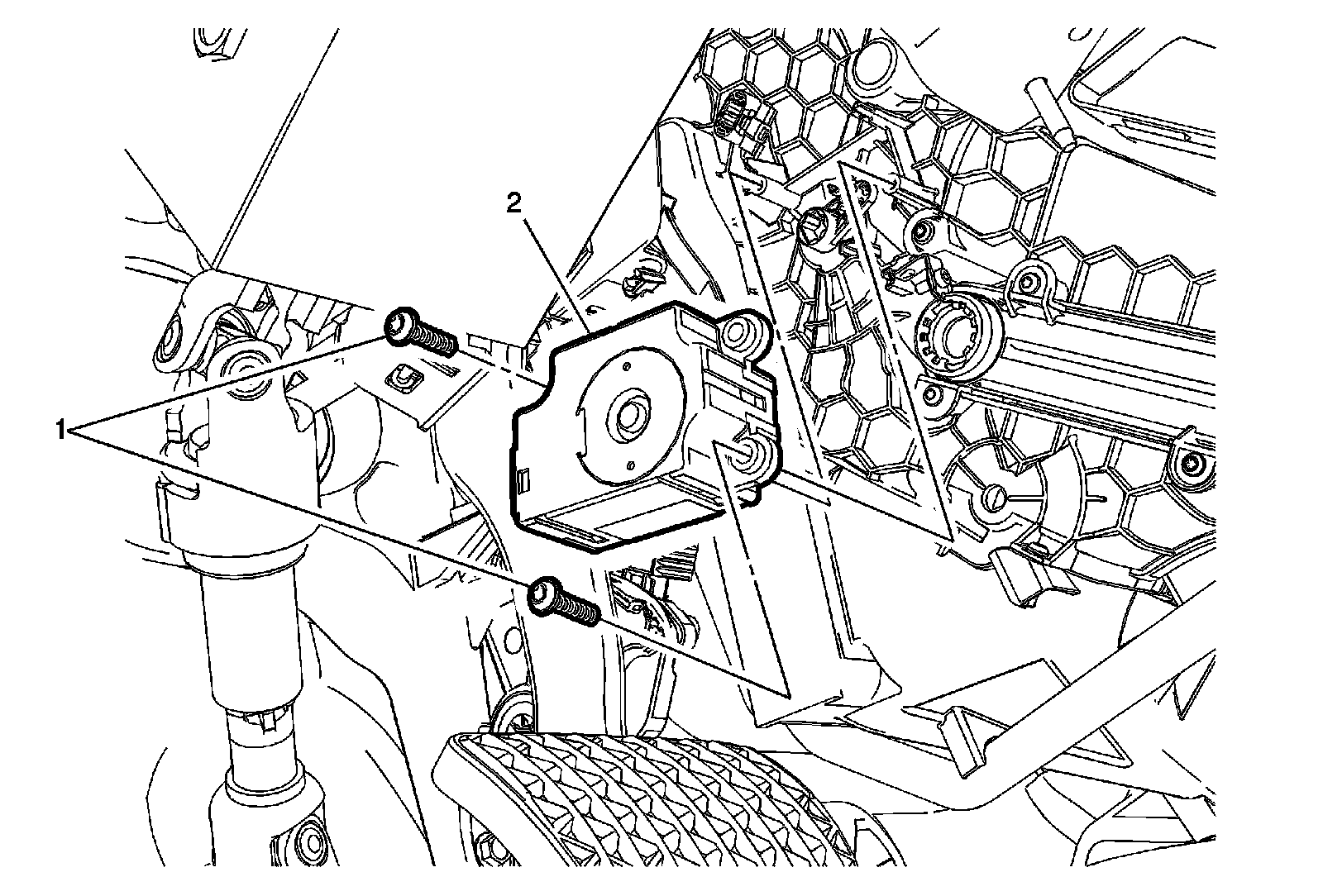

Temperature Valve Actuator Replacement - Left Side




Temperature Valve Actuator Replacement - Left Side
