System Diagram




Starting and Charging Schematics

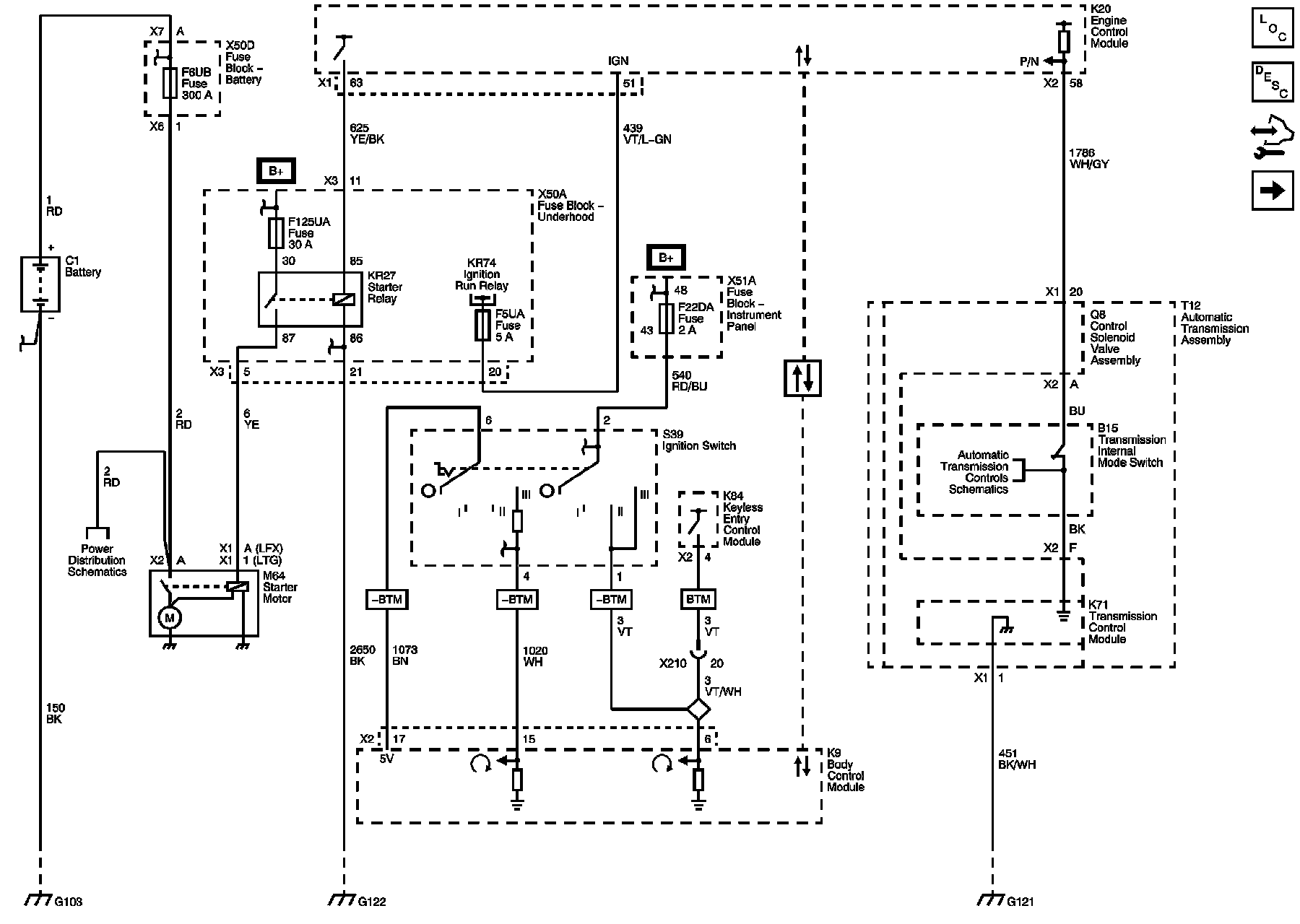

Starting

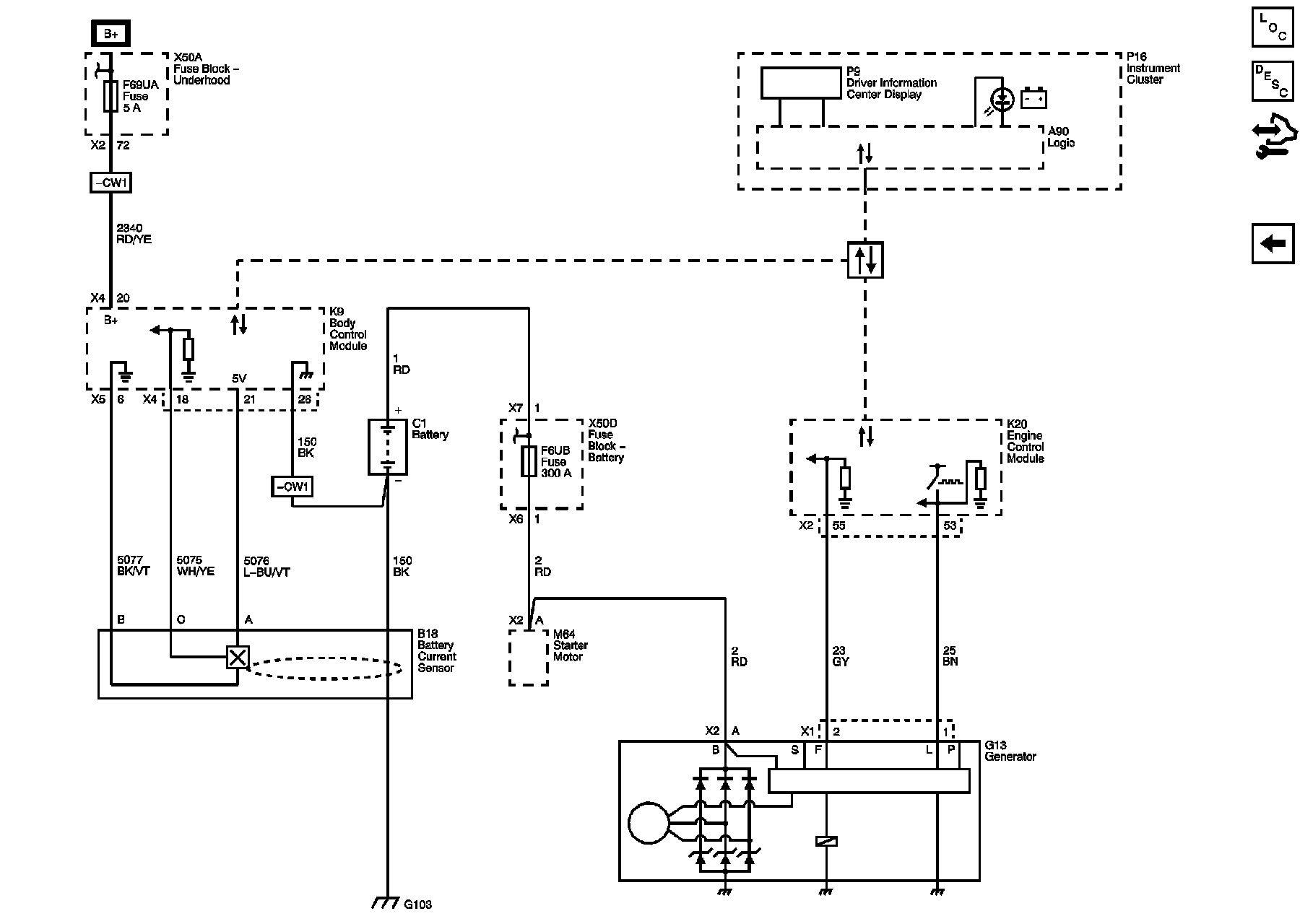

Charging

Charging

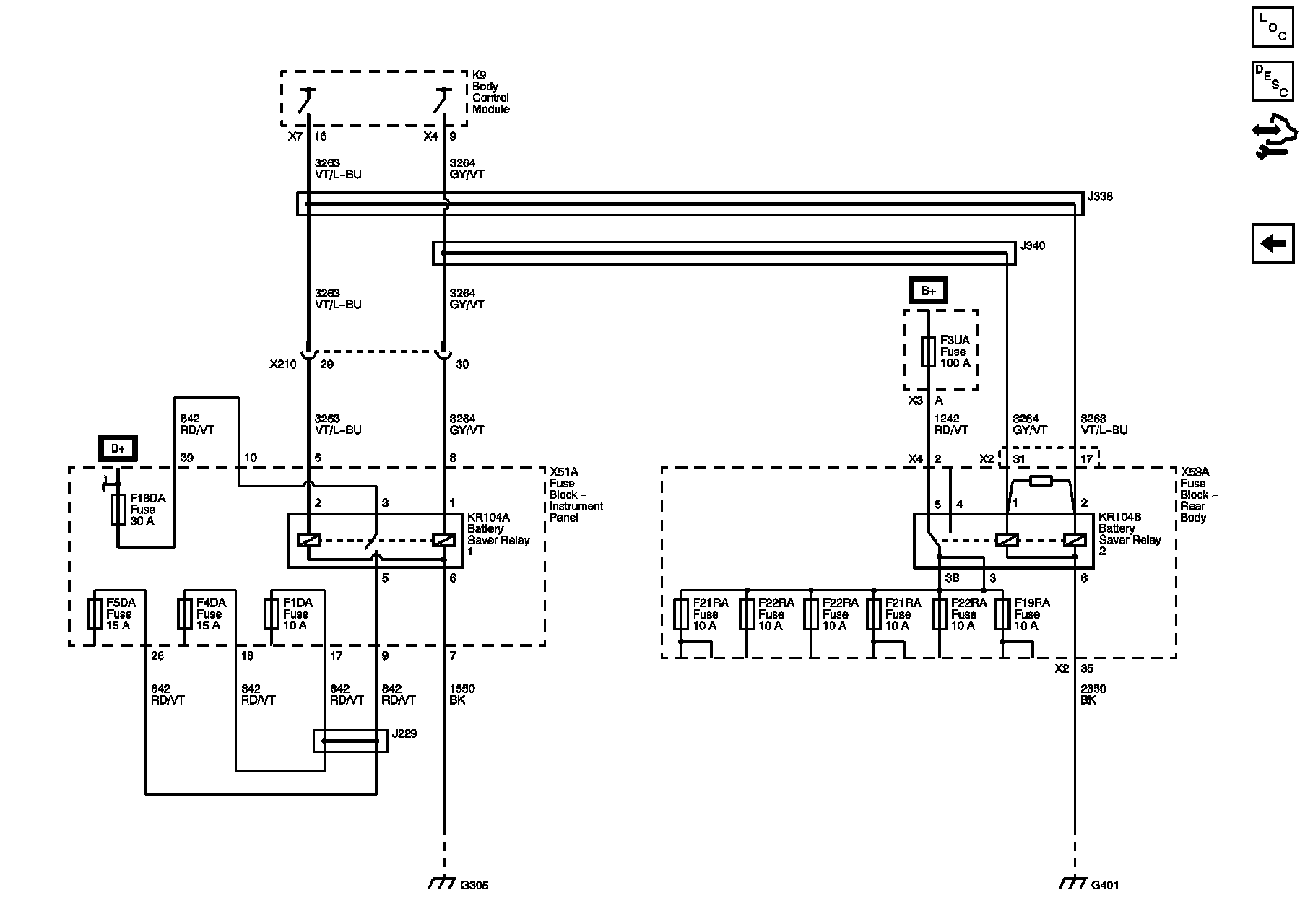

Battery Saver Relays (CZ2)
Starting

Battery Saver Relays (CZ2)





Charging
