Driver Information System Schematics




Driver Information System Schematics

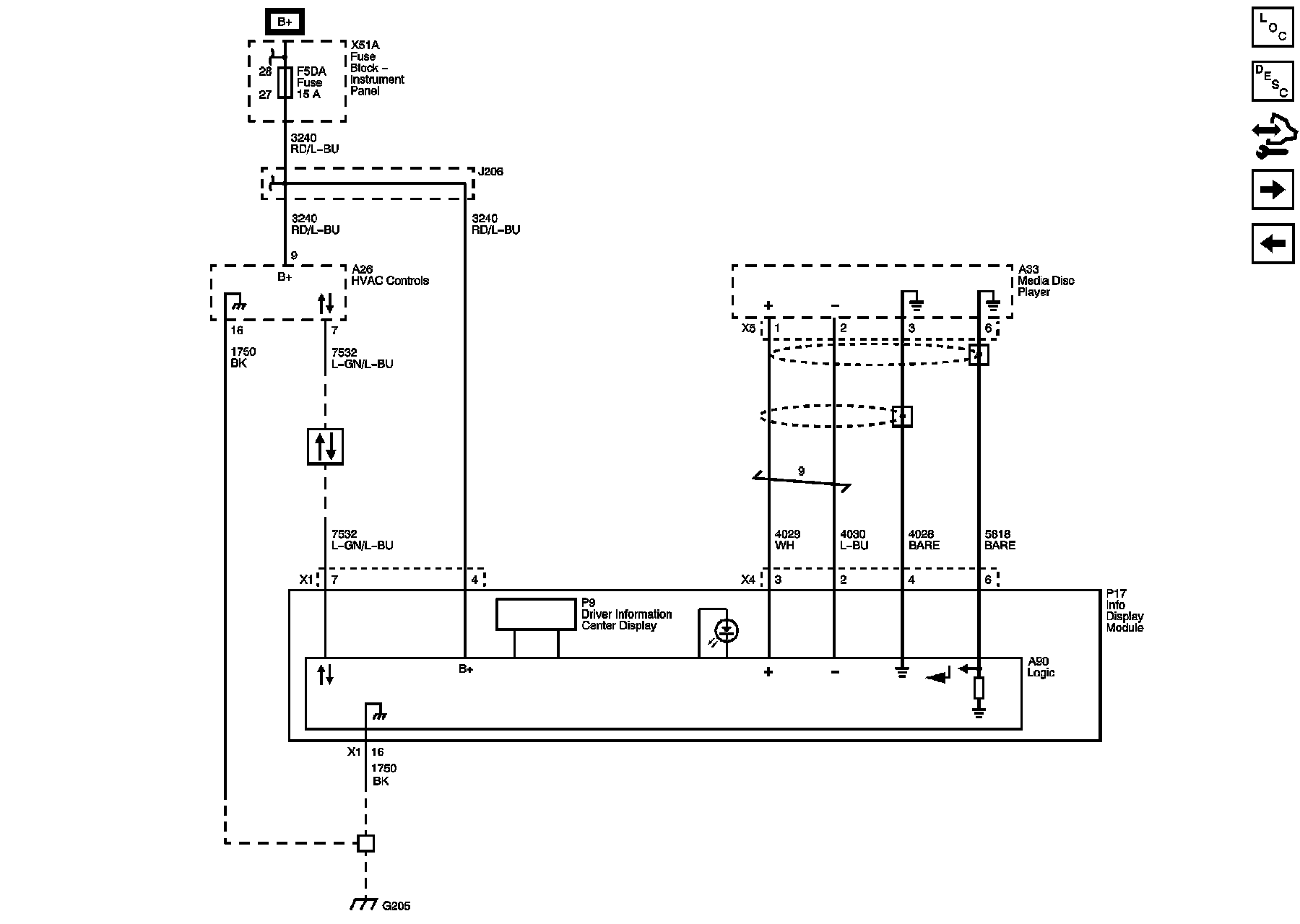

Information Display






Audio Amplifier, Power, Ground and Serial Data (UQA/UQG)
Auxiliary Inputs
