Suspension Position Sensor - Right Rear

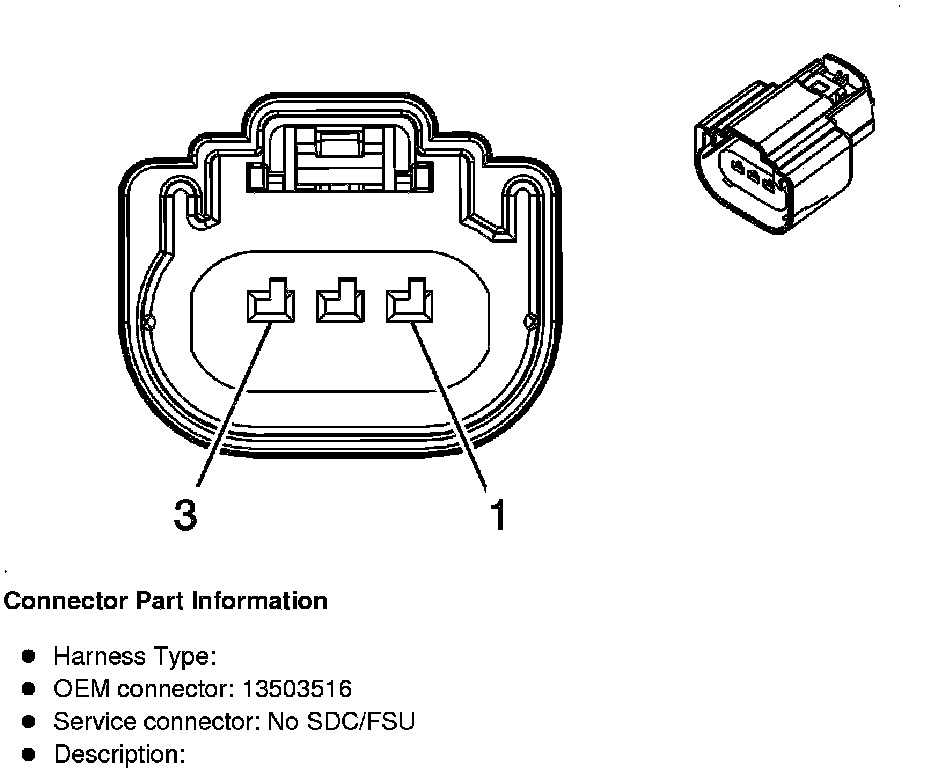

Component Connector End Views

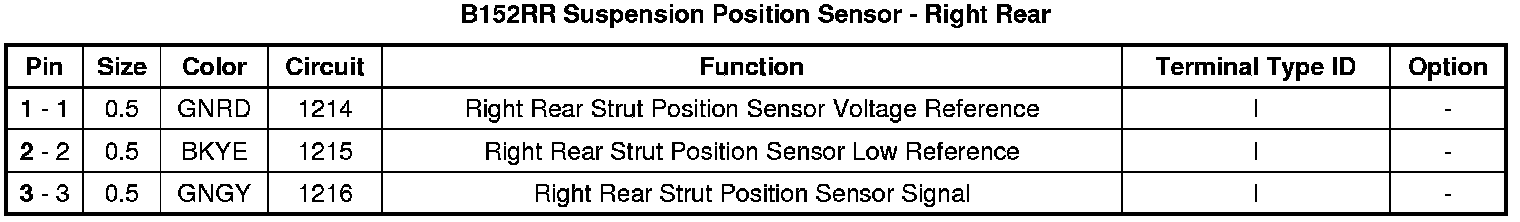

B152RR Suspension Position Sensor - Right Rear
