Suspension Position Sensor - Left Rear

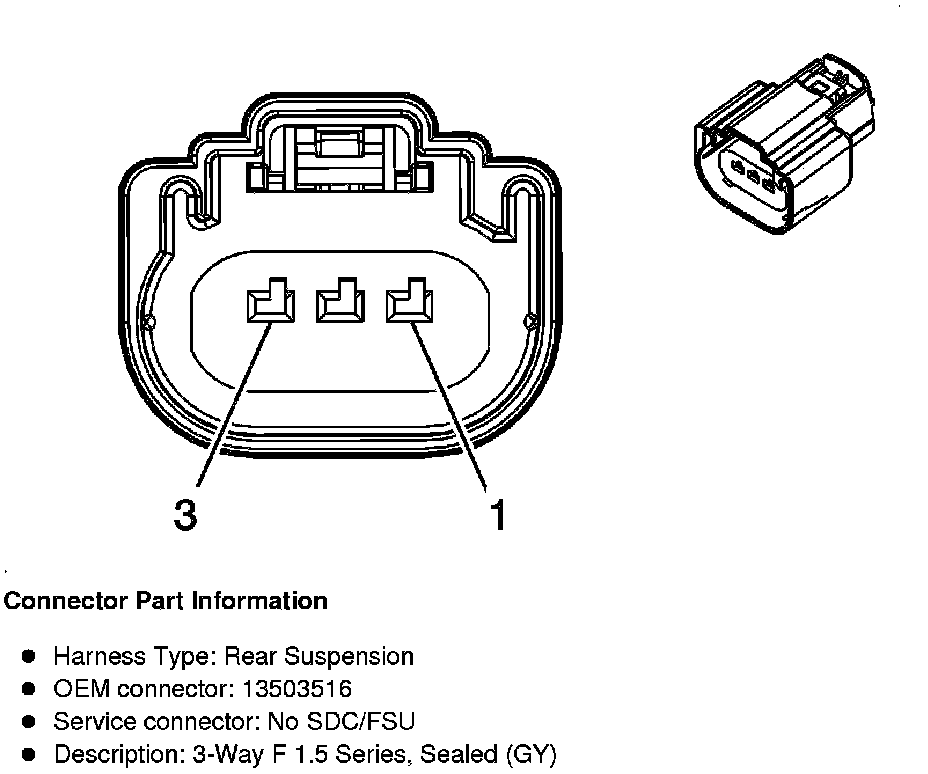

Component Connector End Views

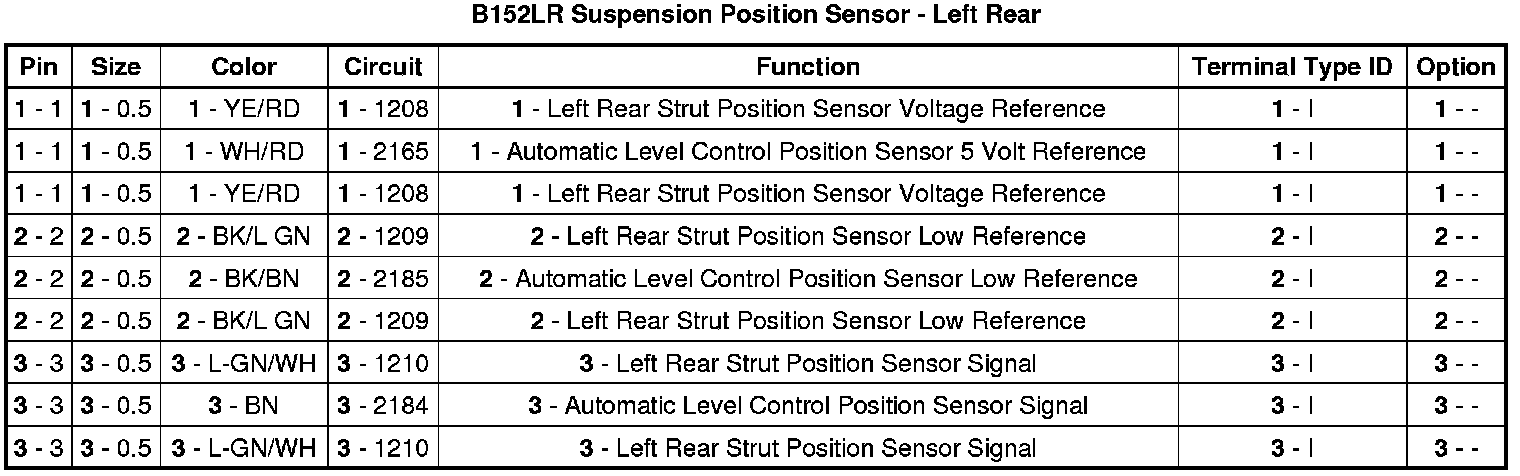

B152LR Suspension Position Sensor - Left Rear
