Shock Absorber Actuator - Right Front

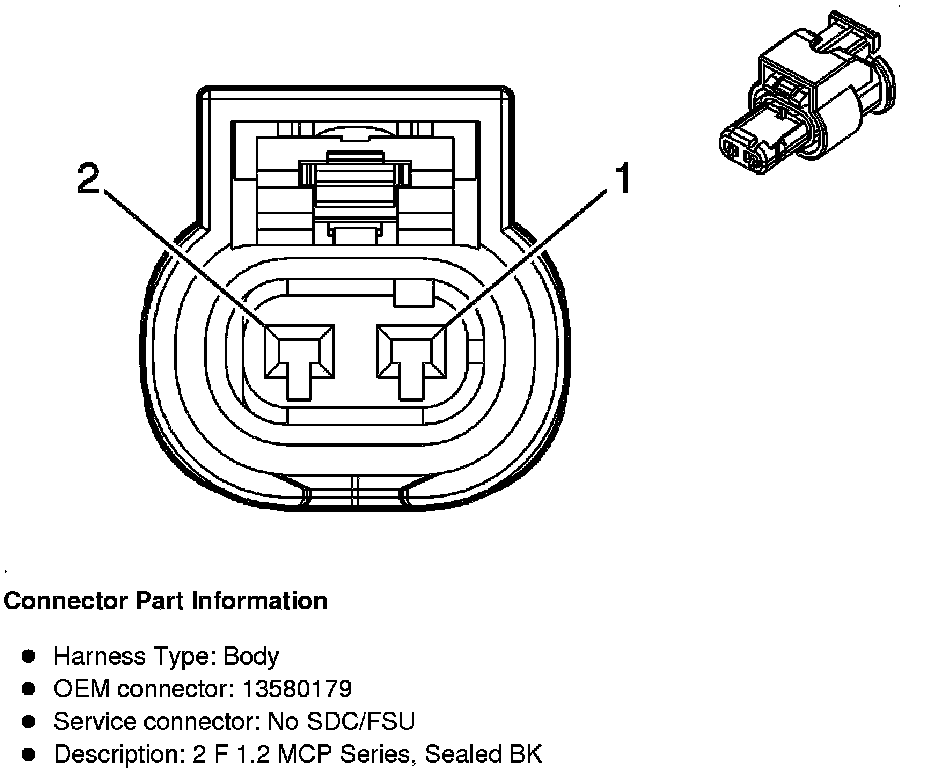

Component Connector End Views

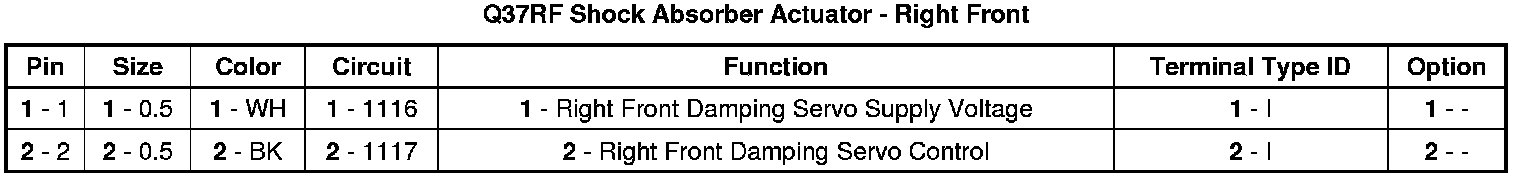

Q37RF Shock Absorber Actuator - Right Front
