Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Seat Heating Control Module - Front X2 (KA1)

Seat Heating Control Module - Front X2 (KA1)

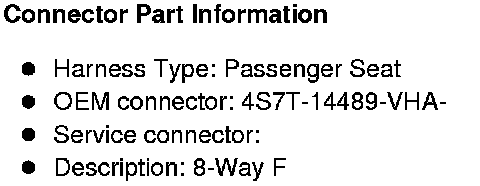

Component Connector End Views

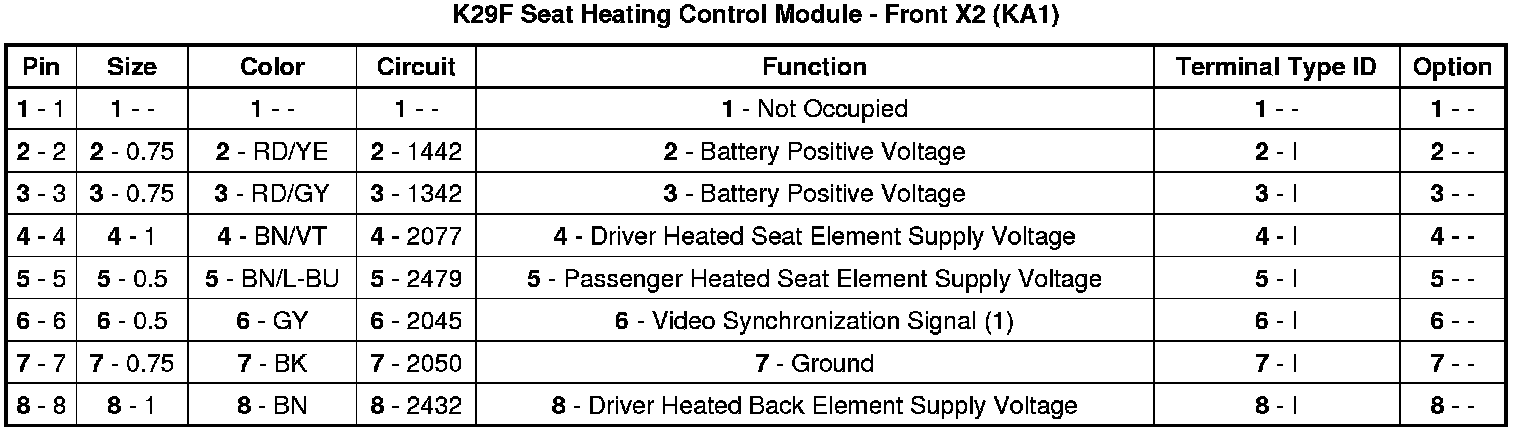

K29F Seat Heating Control Module - Front X2 (KA1)
