Pedestrian Impact Detection Sensor - Upper Beam Front
Pedestrian Impact Detection Sensor - Upper Beam Front

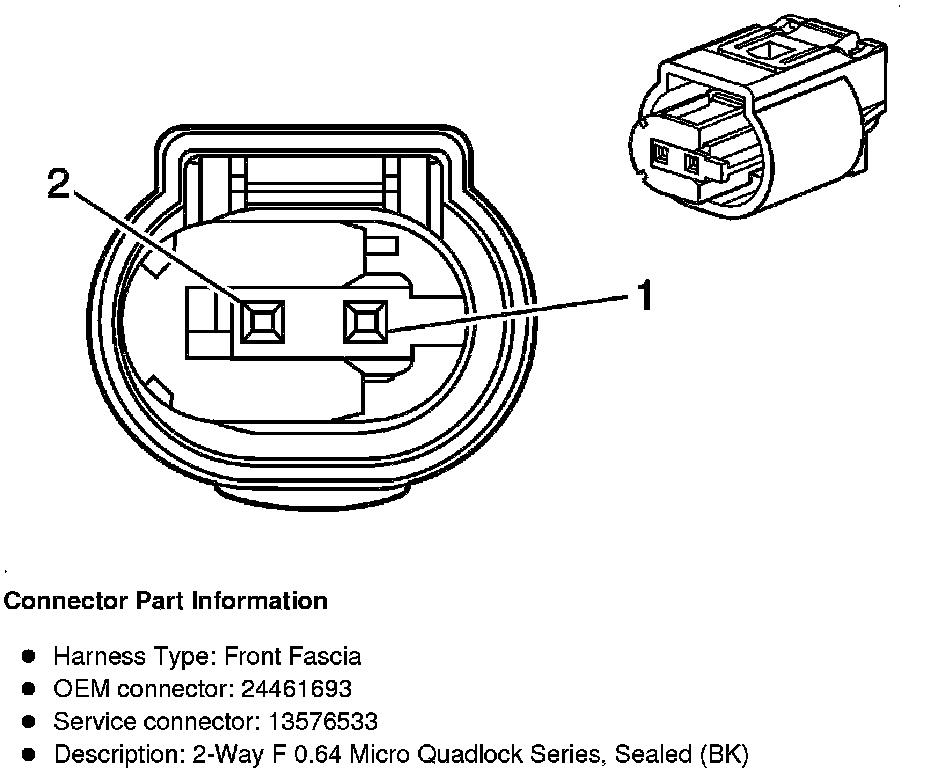

Component Connector End Views

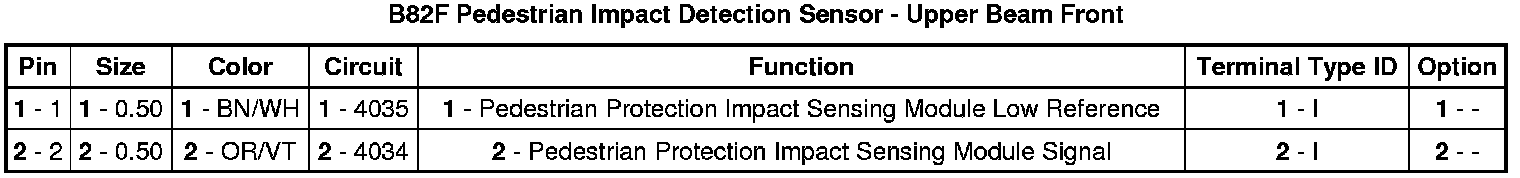

B82F Pedestrian Impact Detection Sensor - Upper Beam Front
