Steering Wheel Heating Control Module (UVD)
Steering Wheel Heating Control Module (UVD)

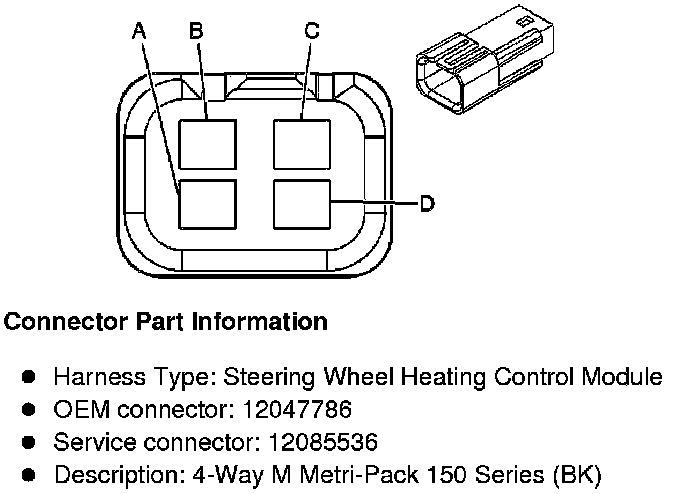

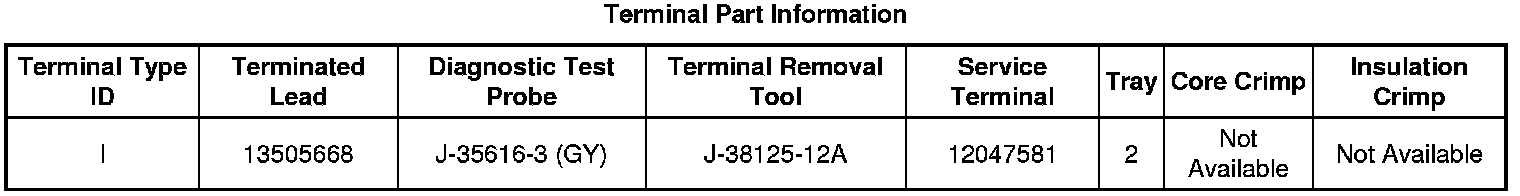

Component Connector End Views

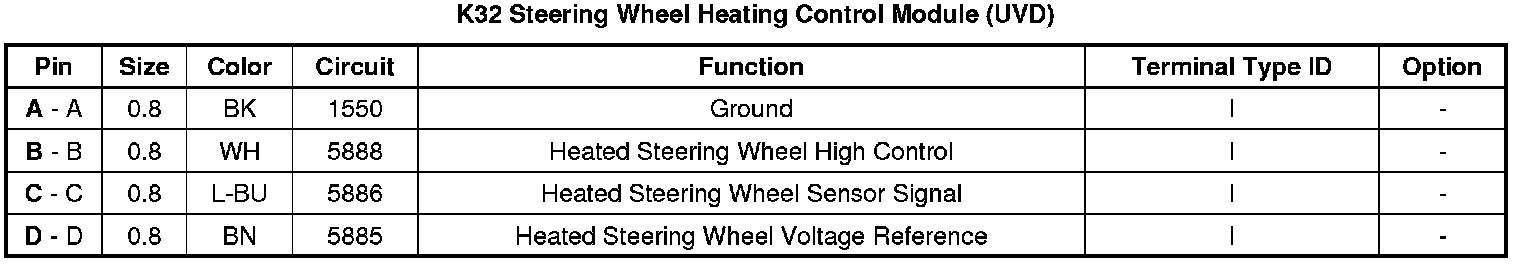

K32 Steering Wheel Heating
Control Module
(UVD)
